Three Magnet Flywheel for the 6.5 Hp (Honda GX200 Clone) Engine Baja MB165 & MB200 Mini Bike

SKU: E41-8545
Baja Motorsports: MB200-332, 165-213, MB165-213

Three Magnet Flywheel for the 6.5 Hp (Honda GX200 Clone) Engine Baja MB165 & MB200 Mini Bike

SKU: E41-8545
Baja Motorsports: MB200-332, 165-213, MB165-213
$27.49
  • This is the correct replacement three magnet flywheel for the 6.5 Hp engine Baja MB165 & MB200 Mini Bike
  • This mini bike is equipped with what is commonly termed a Honda Clone GX200 engine
  • 30 Day Warranty
View full description
Checking status...
Checking status...

Description

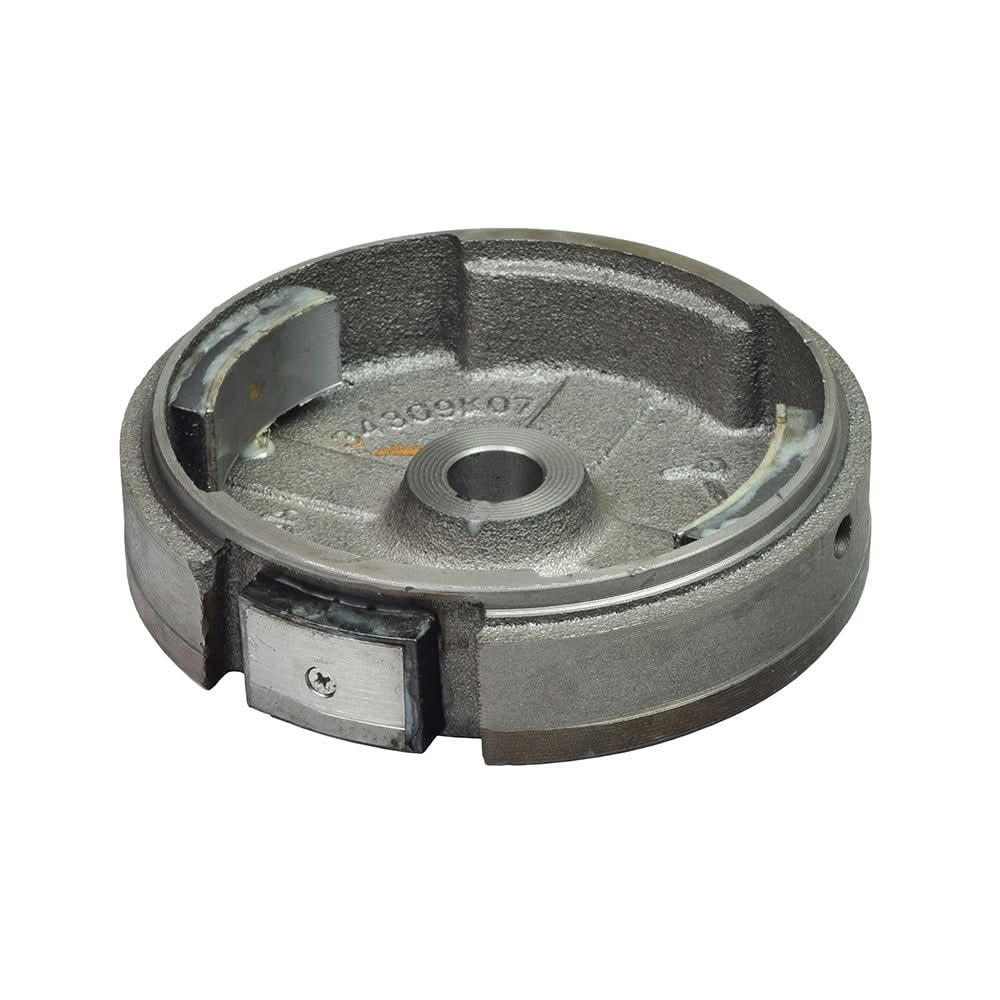

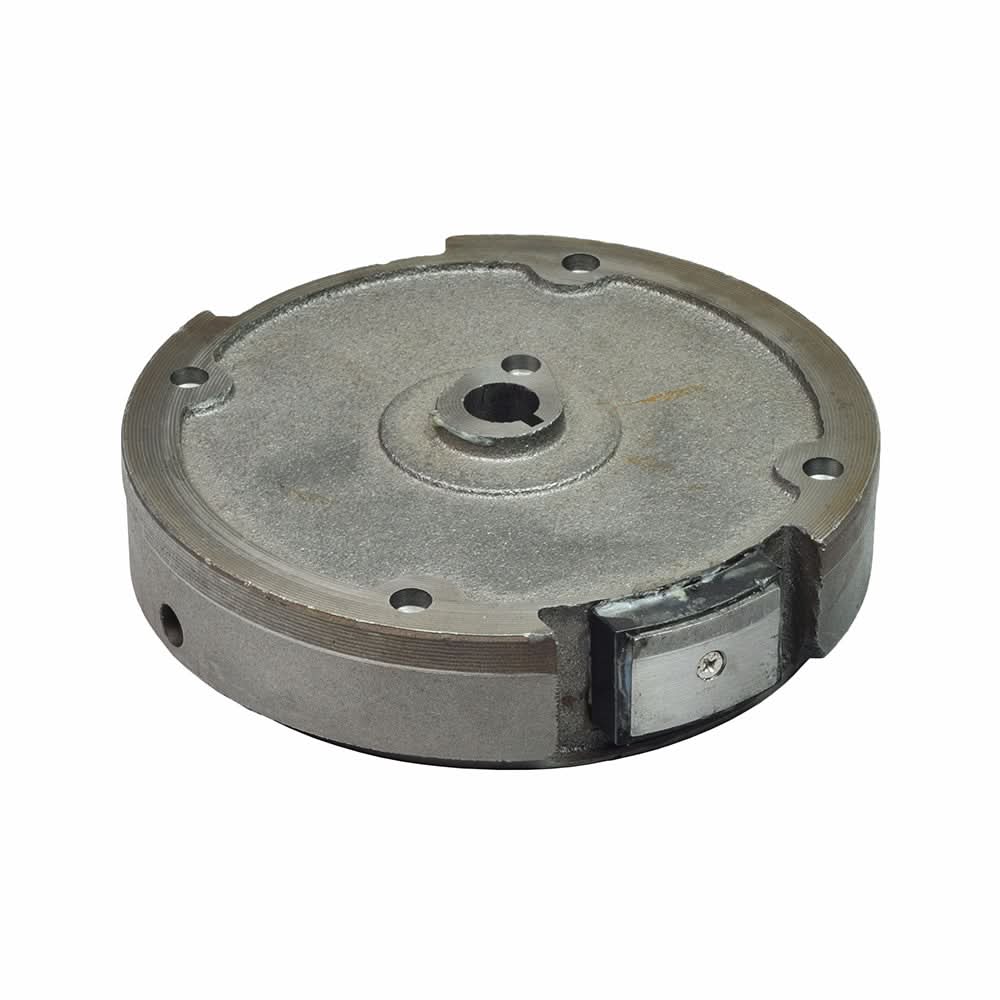

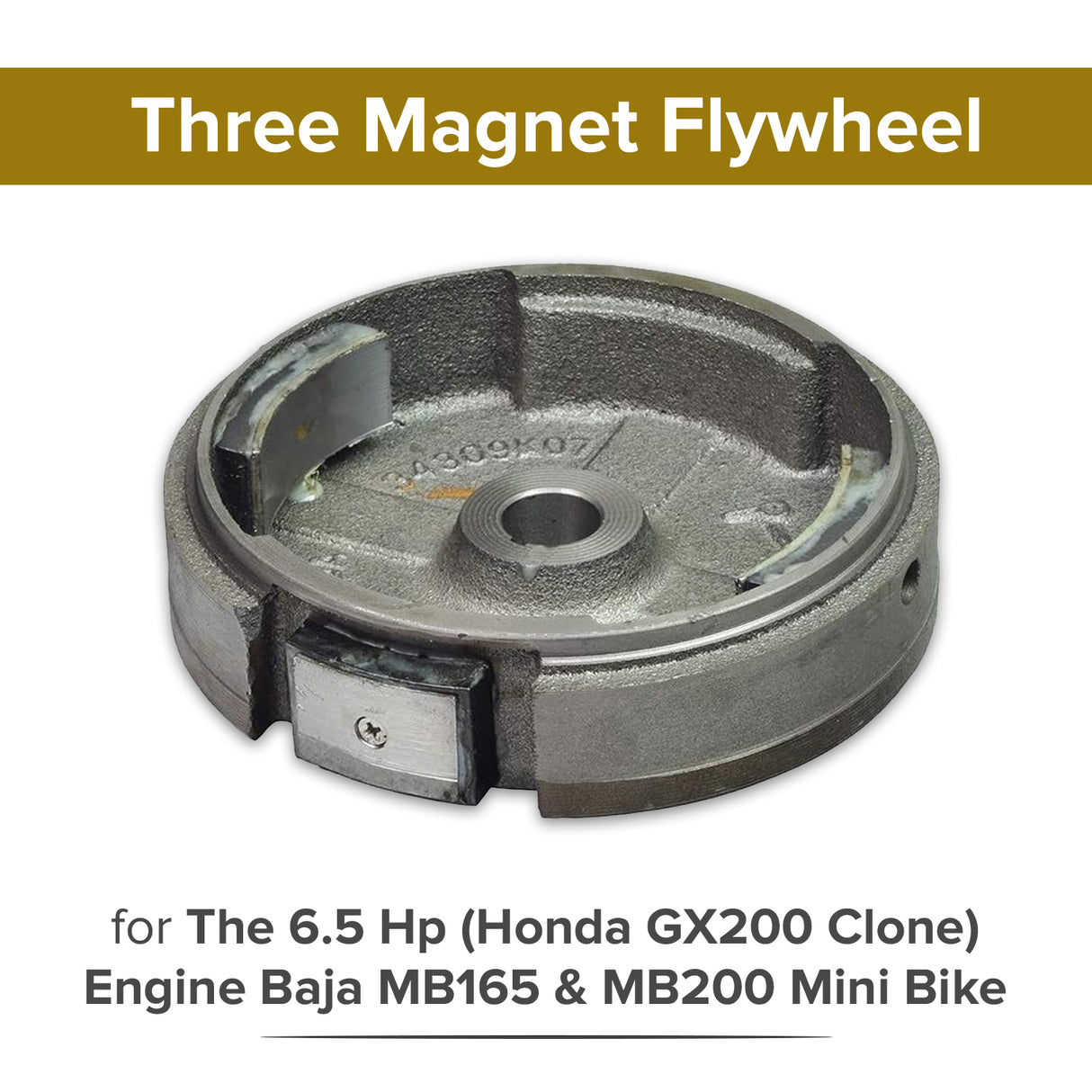

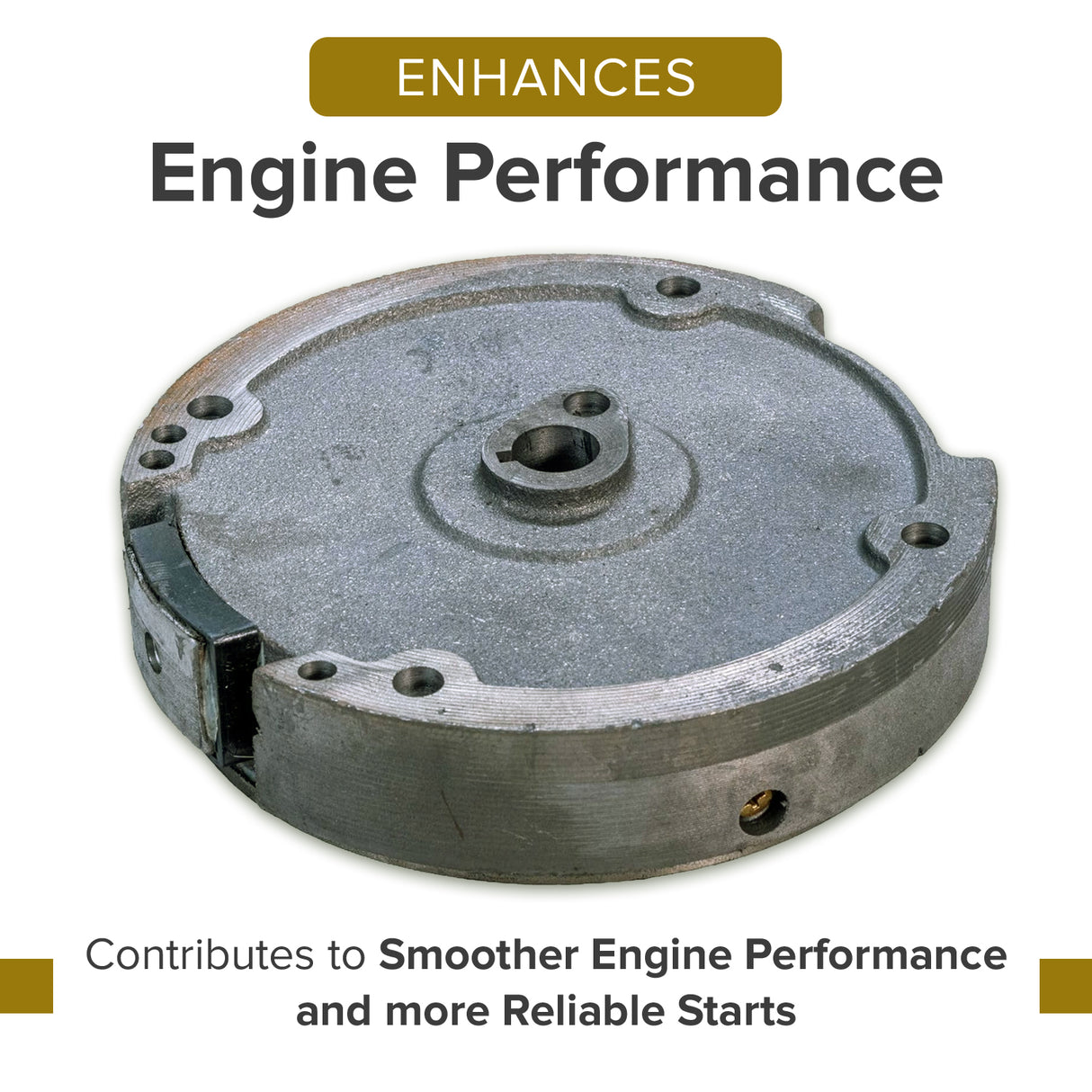

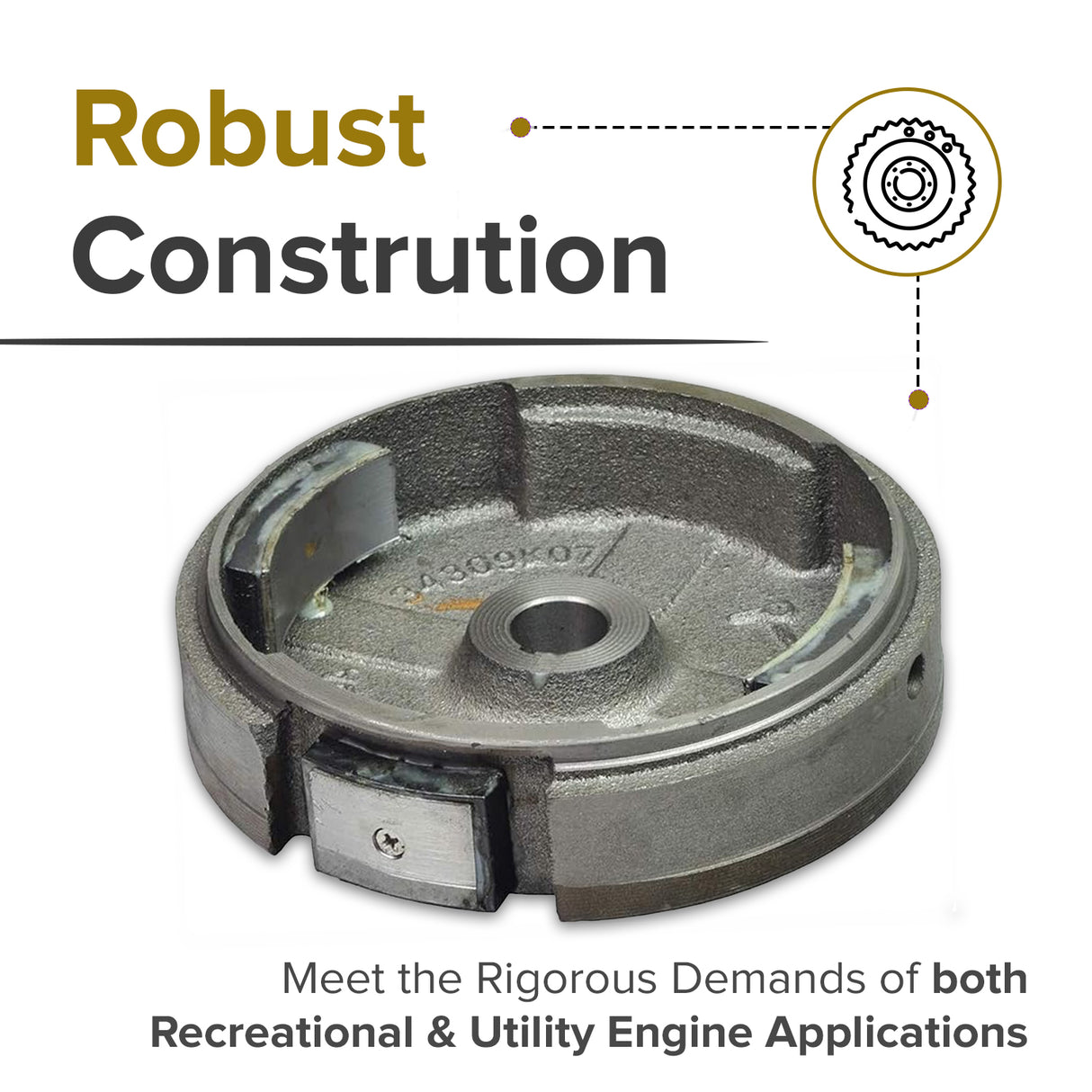

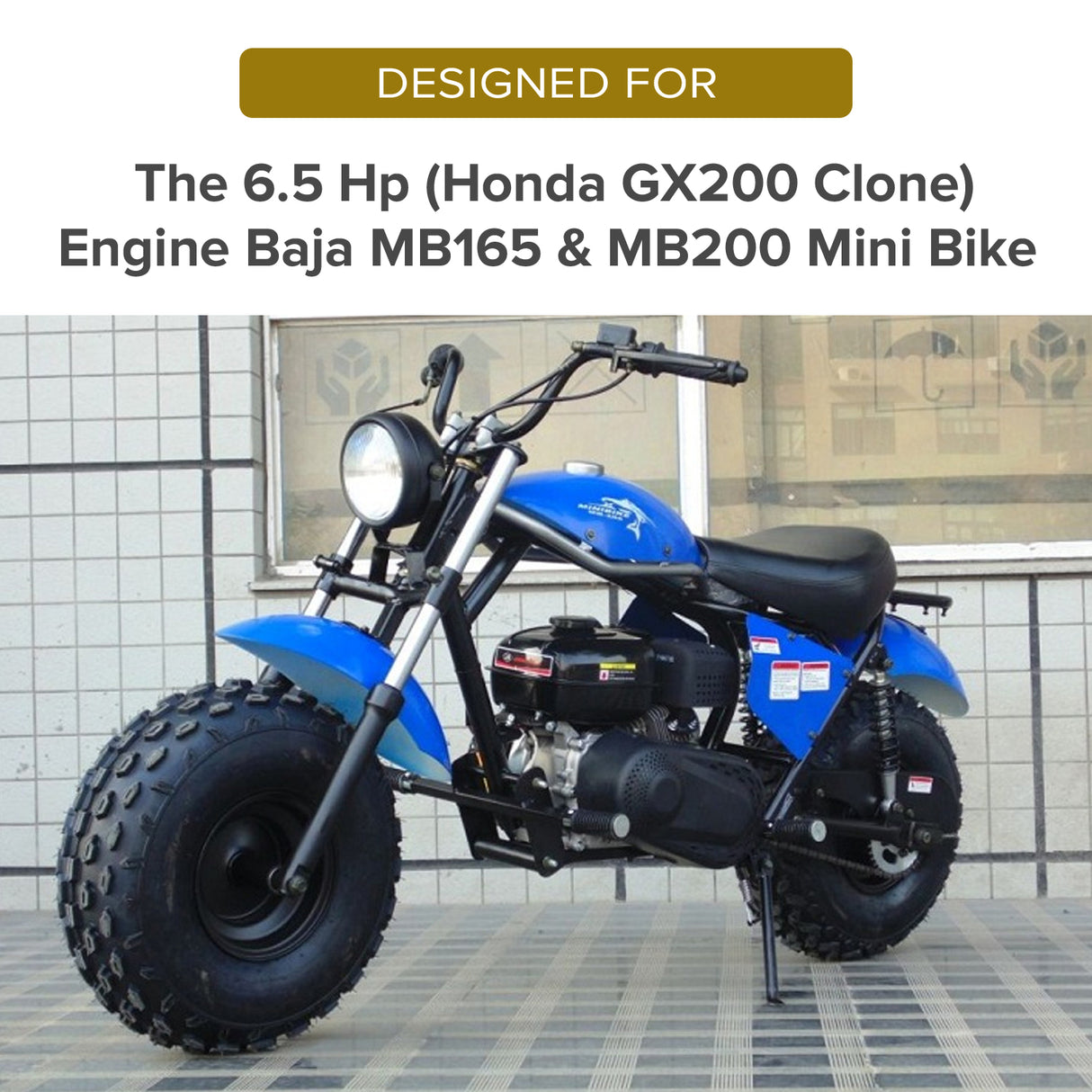

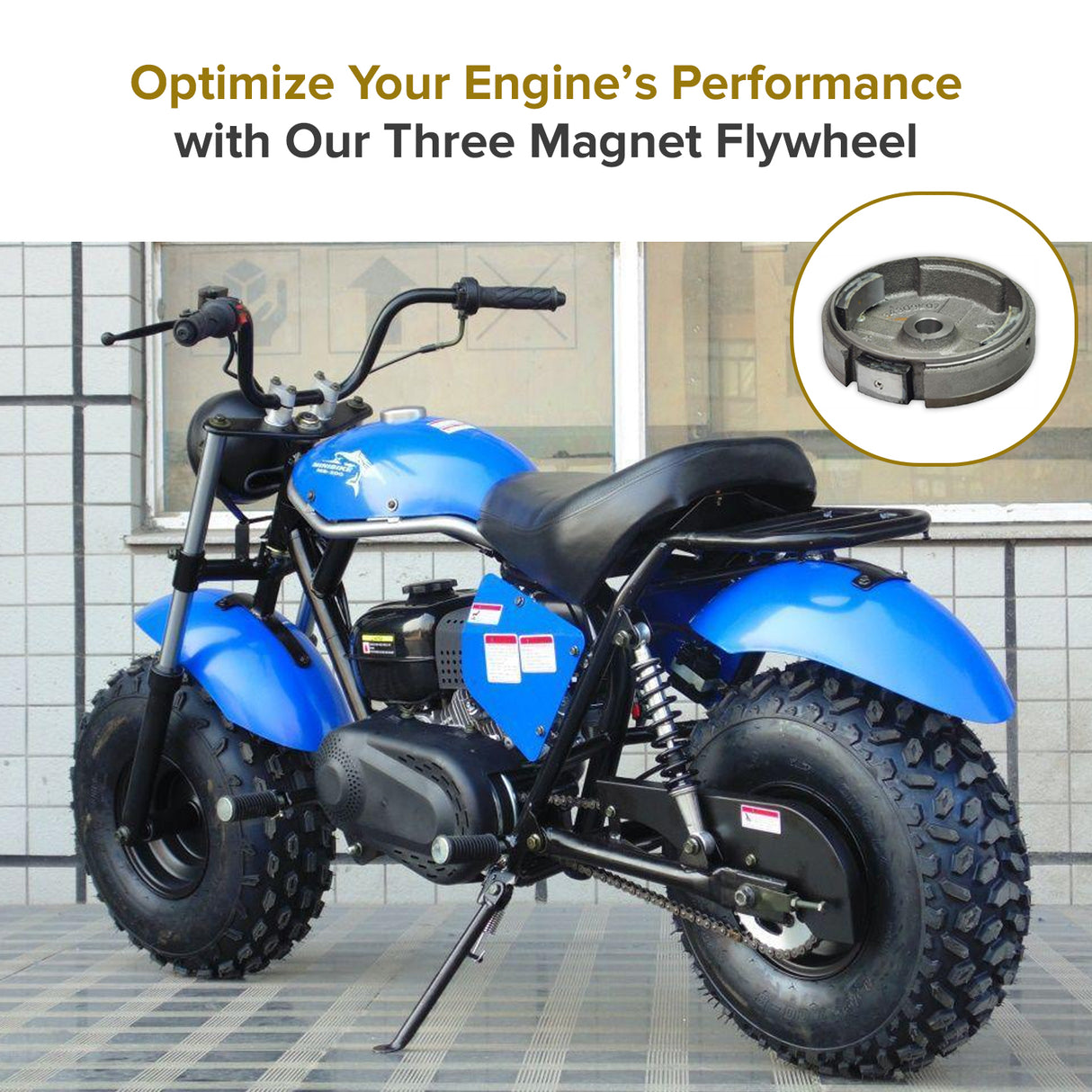

This is the correct replacement three magnet flywheel for the 6.5 Hp engine Baja MB165 & MB200 Mini Bike. This mini bike is equipped with what is commonly termed a Honda Clone GX200 engine. Please read specifications prior to ordering for additional applications for this style of 6.5 Hp GX200 engine, such as generators and power washers.

The mounting hole on this flywheel is conical, with a larger diameter on one once side vice the other. Please see specifications for exact dimensions.

This mini bike engine part may be compatible with a long list of Chinese 6.5 Hp engine manufacturers, such as Hensim, Jiangdong (Jiang Dong), and Tecumseh for companies such as Baja Motorsports.

Baja Motorsports inventory with the following mini bike part numbers has been inconsistent, and mixed with one and three magnet flywheels. Below are the three part numbers Baja Motorsports has assigned to these two flywheels:

⚠ WARNING California Residents: Proposition 65 Warning

Specifications

Magnets: Three total (two inner, one outer)
Outside Diameter: 170mm
Inside Diameter Between Inner Magnets: 125 mm
Through Hole Diameter Large Side: 22mm
Through Hole Diameter Small Side: 17mm
Thickness/Height of Outer Edge: 41mm
Weight: 5.35 lbs.

Questions

Will this fly wheel fit a predator 212cc engine
While we haven't confirmed compatibility with a Predator 212cc 6.5HP engine, this flywheel might fit. We would recommend reviewing the following specifications and comparing them to the specifications for the Predator engine to see if it might fit:


Outside Diameter: 170mm

Inside Diameter Between Inner Magnets: 125 mm

Through Hole Diameter Large Side: 22mm

Through Hole Diameter Small Side: 17mm

Thickness/Height of Outer Edge: 41mm

Weight: 5.35 lbs.
Some one needs to try this on the HF 212 to confirm fitment you could sell a lot more flywheels please let me know Thanks Mike
We have only confirmed compatibility of this flywheel on 6.5hp Honda Clone engines. While we cannot guarantee compatibility with that model engine, it appears in the Review section (below) that other customers have successfully been able to use this part with their HF 212 engine.

Reviews

4.9
out of 5
5 Star
4 Star
3 Star
2 Star
1 Star
Michael G
August 20th, 2023
It's been a few months since I ordered this part. My experience has been that it does fit the Predator 224. It has also held up with a vm22 carb put on. While I do plan on replacing the vinyl cam and factory springs with something a little more spicy, I don't plan on going overboard with the mods. I'll be in the 5000-6500 rpm range. I think this should hold up just fine.
donald d
January 15th, 2021
love it
Anthony C
December 19th, 2020
Worked an fit perfect
Timothy S
August 15th, 2020
Super-fast shipping, very happy with this product.
Jeffrey P
June 2nd, 2020
Paul L
January 29th, 2019
Have not installed but looks good
Rob M
January 22nd, 2019
I installed this flywheel on my Harbor Freight Predator 212cc NON-HEMI engine along with 2 lighting coils to power some lights on my motorcycle. The dimensions seem close enough, shaft taper seems fine. Everything cleared the coils and was able to light up my lights . Machining quality is not as good as original HF flywheel but it worked so who cares? Only mod I did was trim 1 of the 4 locating posts that is on the back of original plastic fan because HF uses 4 post to locate it on flywheel and this one uses only 3 see pic. So you need to figure out the right one and cut off with a knife. All the shrouds and starter parts fit as well.
Joel G
December 3rd, 2018
Very sturdy will built product. Can't wait to install on my mini bike
Nathan M
November 16th, 2018
It’s a little sloppy, glue and metal shavings everywhere. Had to file off a bunch of little flakes of metal from the machining. Works fine
Charles W
September 22nd, 2018
Sean L
July 20th, 2018
Frank C
May 15th, 2018
Seemed to be almost same level of quality as the original flywheel it replaced. Functions as expected
Sierra H
September 10th, 2017
RH
April 8th, 2017
