24 Volt 900 Watt Motor, Controller, & Throttle Kit

SKU: X98-1067

24 Volt 900 Watt Motor, Controller, & Throttle Kit

SKU: X98-1067
$189.99 +Free Shipping
  • 24 volt 900 watt motor upgrade and project kit includes throttle, controller, and 900 watt motor
  • This is the most powerful 24 volt motor kit available
  • 30 Day Warranty
View full description
Select Your Option
Select Your Option
Availability may vary

Description

24 volt 900 watt motor upgrade and project kit includes throttle, controller, and 900 watt motor. This is the most powerful 24 volt motor kit available.

The minimum recommended battery size for this kit is two 12 volt 10 amp hour batteries. Larger 12 volt batteries can be used to fit your application and to provide longer run times.

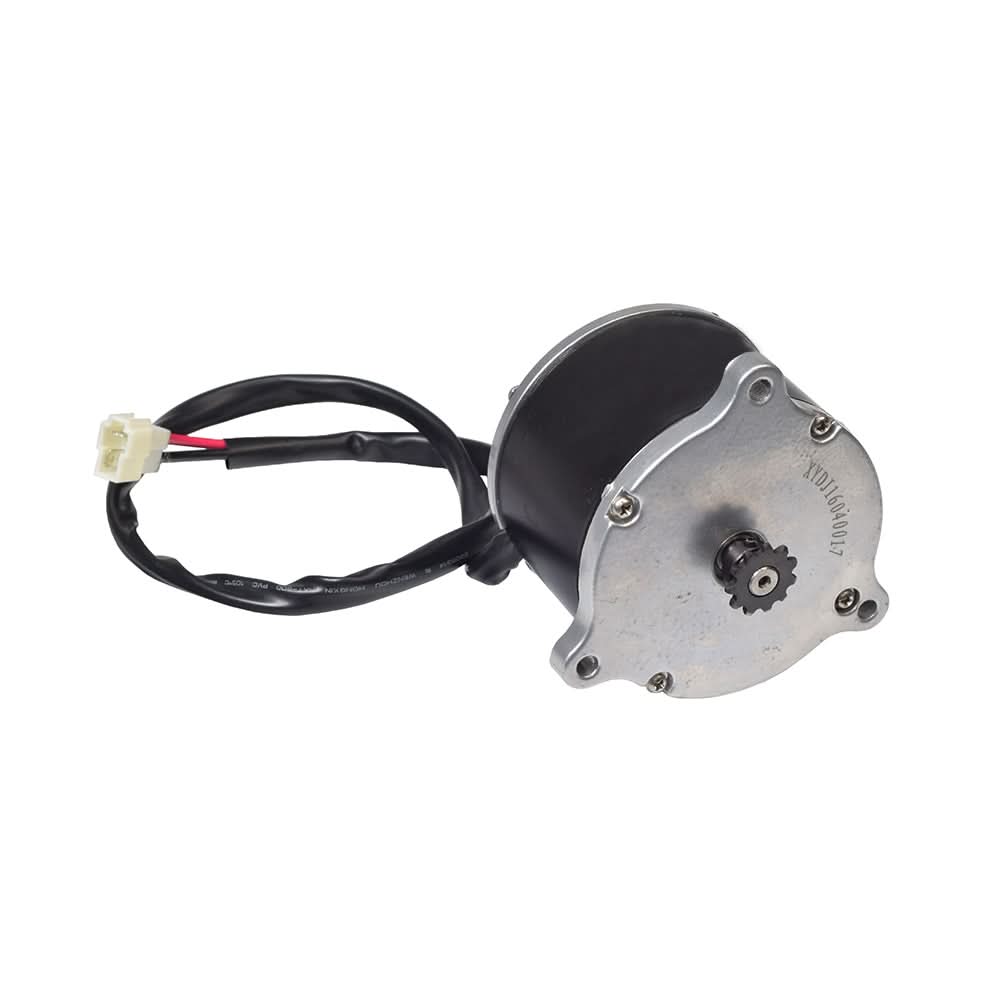

C80-8757
24 Volt 900 Watt Electric Motor with 11 Tooth Chain Sprocket (Currie Technologies)
This model comes outfitted with a universal mounting bracket suitable for most 24 volt electric scooters.

This motor can also be used on custom bicycles, go karts and projects with the 24 volt 40 amp speed controller and hand throttle.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

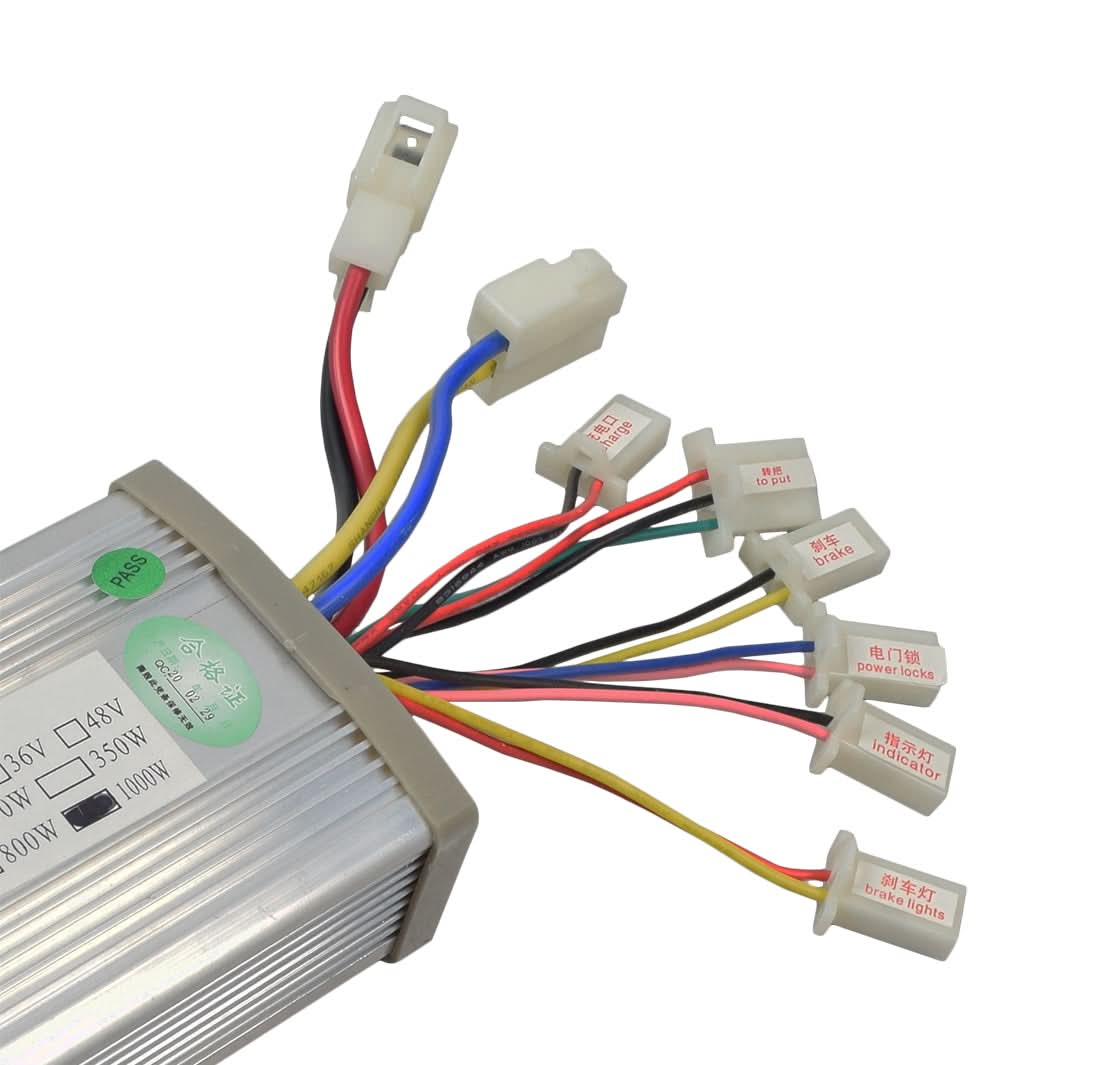

Z09-1706
24 Volt 1000 Watt Permanent Magnet Universal Speed & Voltage Controller
This controller uses a 3 wire throttle.

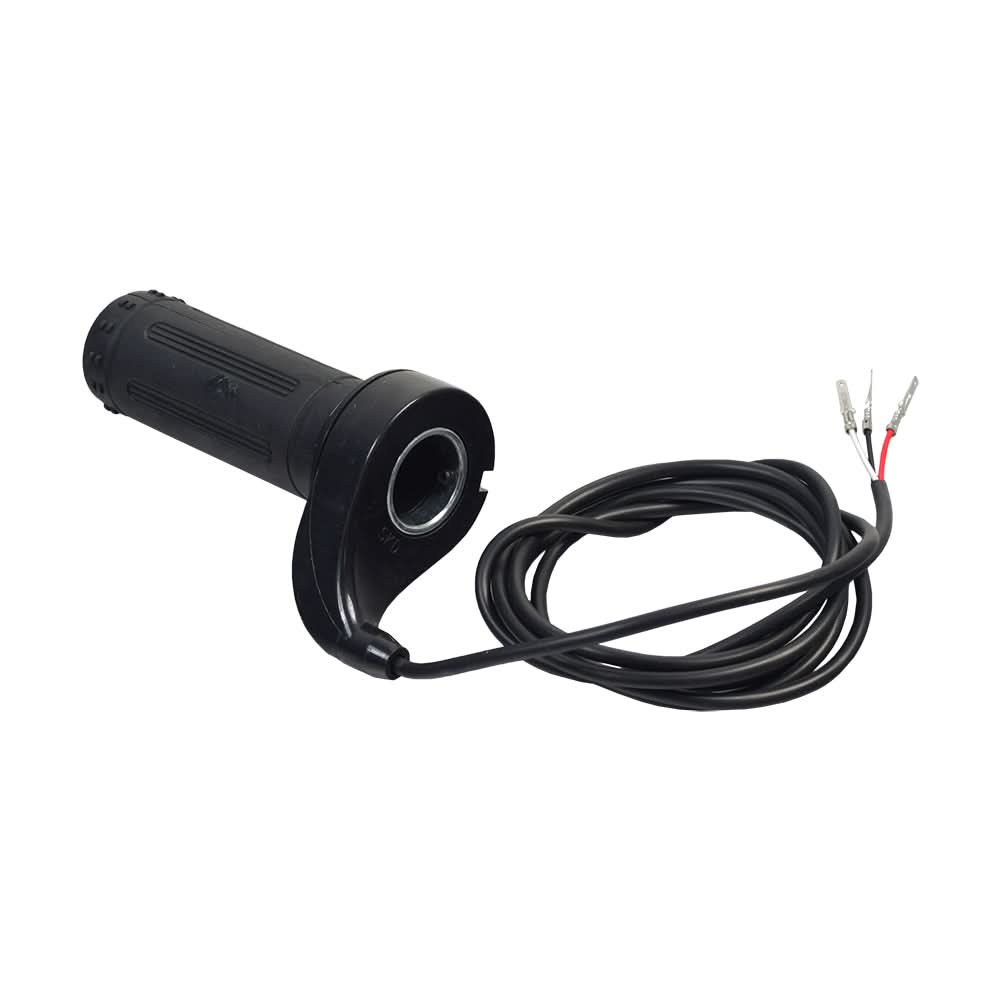

T53-6119 (Full Grip Throttle)
Hand Throttle with 3 Wires
Electric scooter, pocket bike, and dirt bike 3 wire hand throttle. This is the most common type of throttle used on electric scooters.

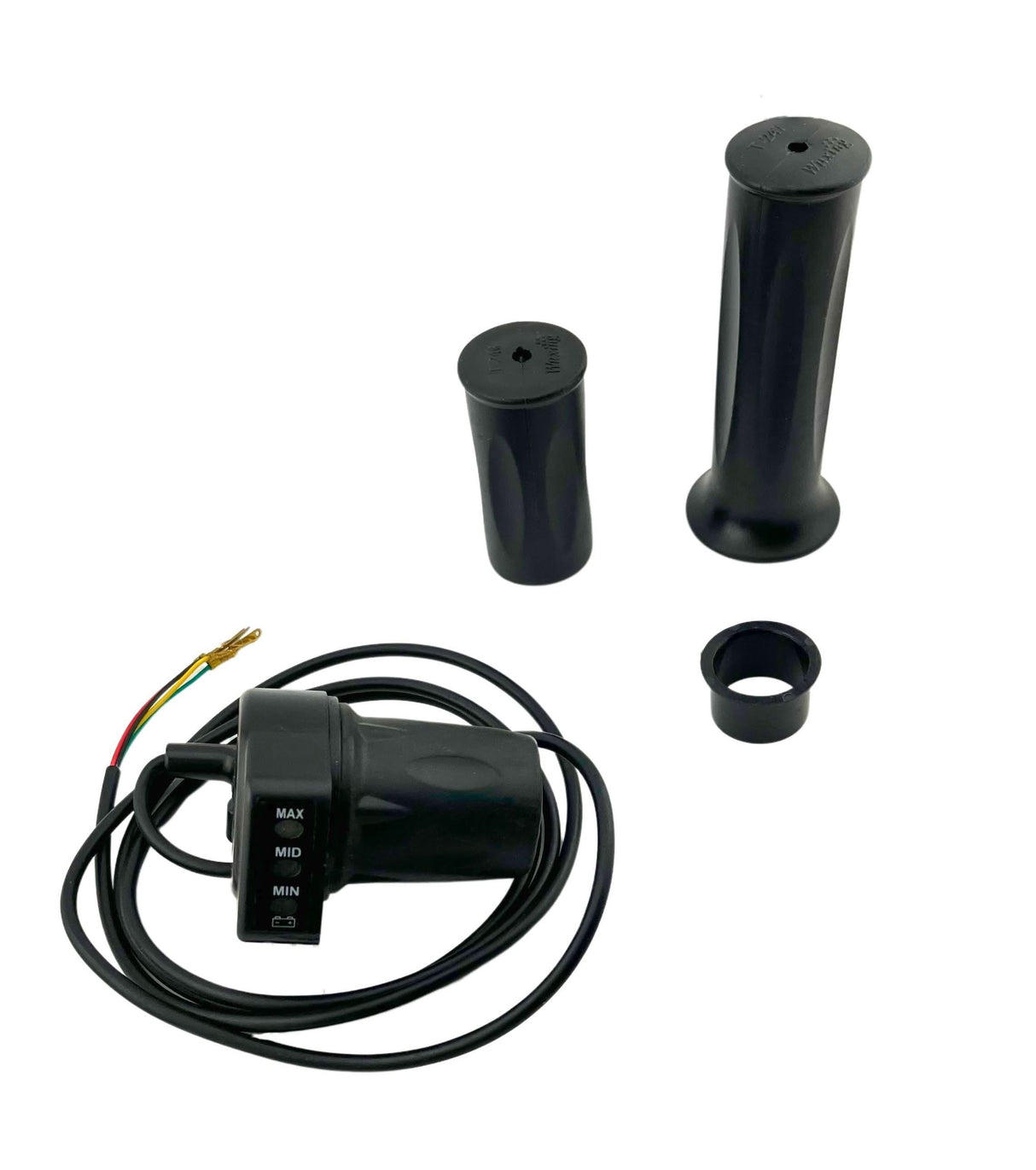

T53-6109 (Half Grip Throttle)
Twist Grip Throttle with 4 Wires
This universal 4-wire twist grip throttle is compatible with all scooters and electric products that use a variable speed throttle and a controller with a 3-wire throttle connector.. For situations where a half grip throttle would be more appropriate, we recommend this version of the kit. This half-grip throttle may have an optional fourth blue or yellow wire and be marked as either 24V or 36V. The superfluous wire is for the optional battery level meter and is not used in three wire throttle and controller applications. The three wire throttle configuration can be used on any voltage controller, including 18 volt, 24 volt, 36 volt, or 48 volt controllers.

Note: All scooter controllers require a switch, (joined to the "Lock" connector on the controller wires), in order to complete the electrical circuit.

⚠ WARNING California Residents: Proposition 65 Warning

Specifications

Motor:
MODEL: XYD-13 Motor
TYPE: Brush
VOLTAGE: 24 Volt DC
RATED SPEED: 2600 RPM
RATED CURRENT: 34 Amp
SPROCKET: #25 Chain 11 Tooth
OUTPUT: 900 Watts
ROTATION: Reversible
LENGTH: 3-3/4"
DIAMETER: 4"

Throttle:
INSIDE THROTTLE DIAMETER: 7/8"
WIRE LENGTH: 61"

Controller:
VOLTAGE: 24 Volts
WATTAGE: 900 Watts

Questions

Can I swap this in place with a 24v 750 E-Zip scooter?
As this motor has a higher wattage than that on the E-750, we cannot guarantee compatibility and are unable to advise on swapping the motor for a non-OEM option for safety reasons. If this motor's measurements match the one on your unit, then it would physically fit, but again, we cannot guarantee the compatibility.
What does this cost to ship to uk
Shipping depends on the size and weight of the package, and how far it's travelling. Once you add the item to your shopping cart, select your country in the drop down menu and type in the postal code. You will be able to see the various shipping times and costs for the different shipping options available.
