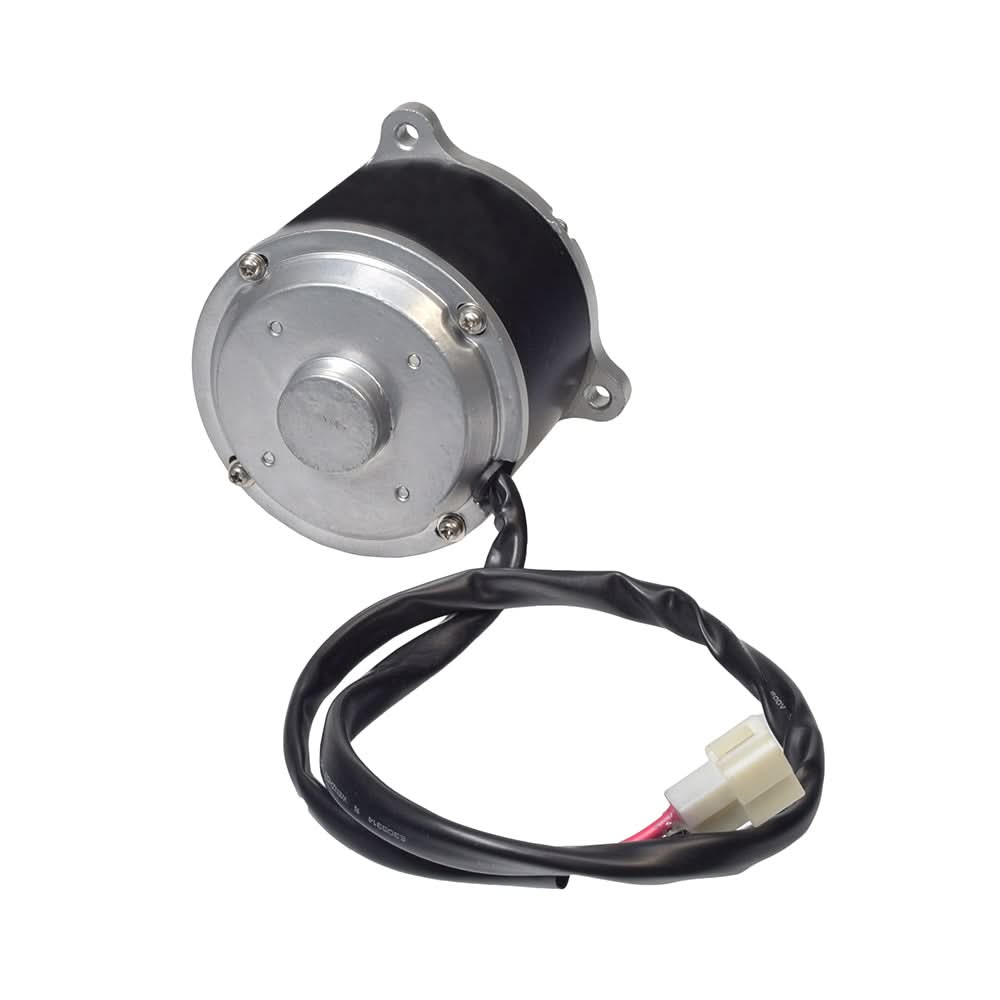

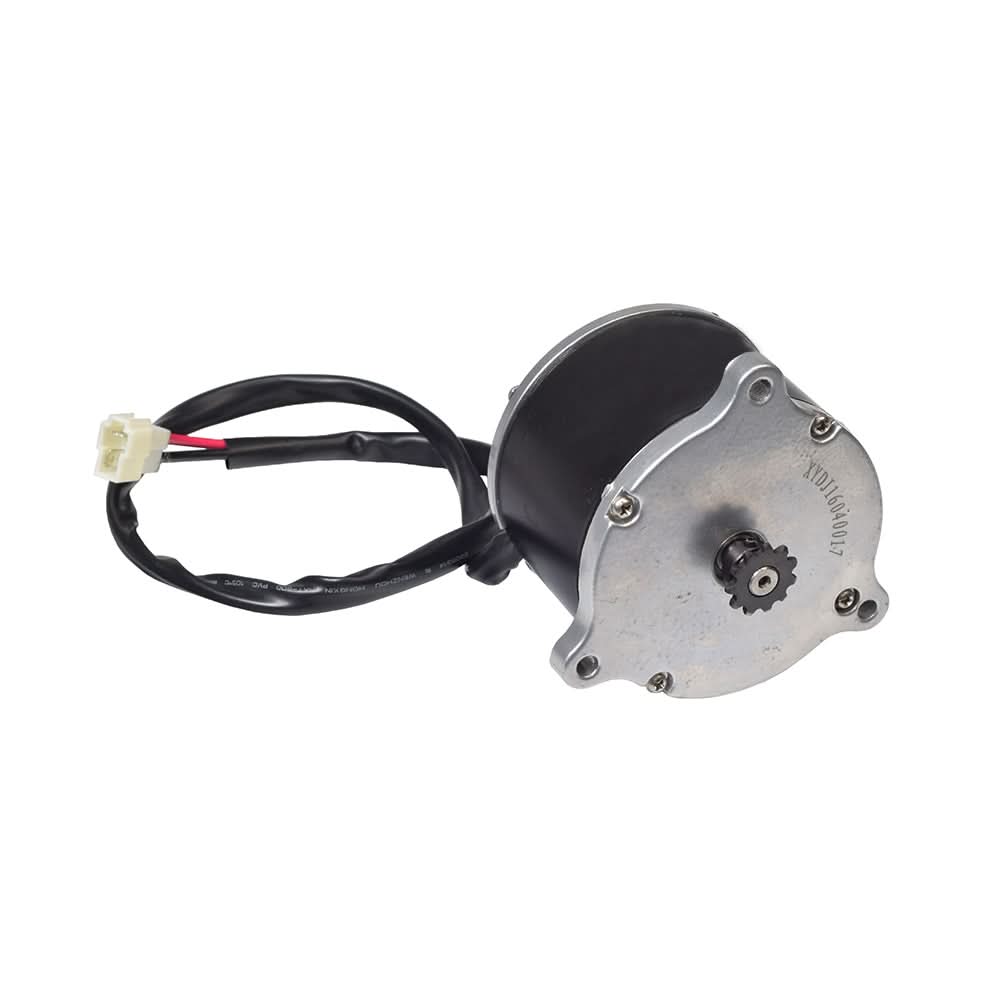

24 Volt 900 Watt Electric Motor with 11 Tooth #25 Chain Sprocket (Currie Technologies)

Currie Technologies provides high performance with this 900 Watt electric motor. You can dramatically increase low end torque and top end speed.

As Currie Technologies is the parent company for all Schwinn, Mongoose, e-Zip, & IZIP electric scooter products, this motor has great adaptability. It will work with all the Currie OEM and Currie compatible parts.

This model comes outfitted with a universal mounting bracket suitable for most 24 volt electric scooters.

This motor can also be used on custom bicycles, go karts and projects with the 24 volt 40 amp speed controller and hand throttle.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

Model: XYD-13 Motor
Type: Brush
Voltage: 24 Volt DC
Rated Speed: 2600 RPM
Rated Current: 34 Amp
Output: 900 Watts
Rotation: Reversible
Sprocket: #25 Chain 11 Tooth Removable Set-Screw Sprocket
Case Length: 3-3/4" (95 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
