Electrical Kit (Control Module & Foot Pedal Throttle) for the Razor Crazy Cart (Versions 5+) & Crazy Cart DLX (Versions 1+)

Razor
SKU: E41-8693
Razor: W25143490164

Electrical Kit (Control Module & Foot Pedal Throttle) for the Razor Crazy Cart (Versions 5+) & Crazy Cart DLX (Versions 1+)

Razor
SKU: E41-8693
Razor: W25143490164
$44.29

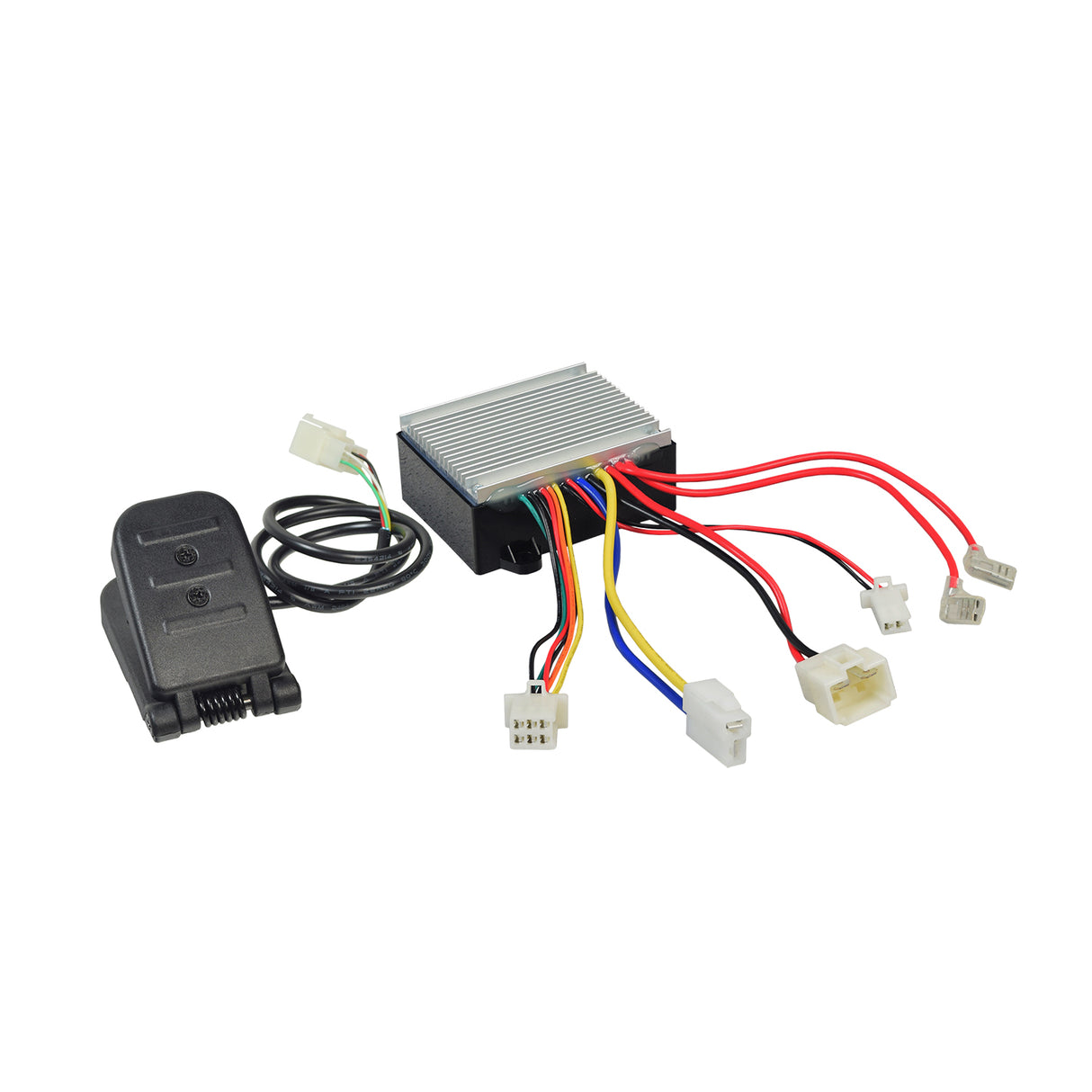

  • HB2430-TYD6K1 control module plus a foot pedal throttle all in one kit
  • All necessary wires & harness pre-installed

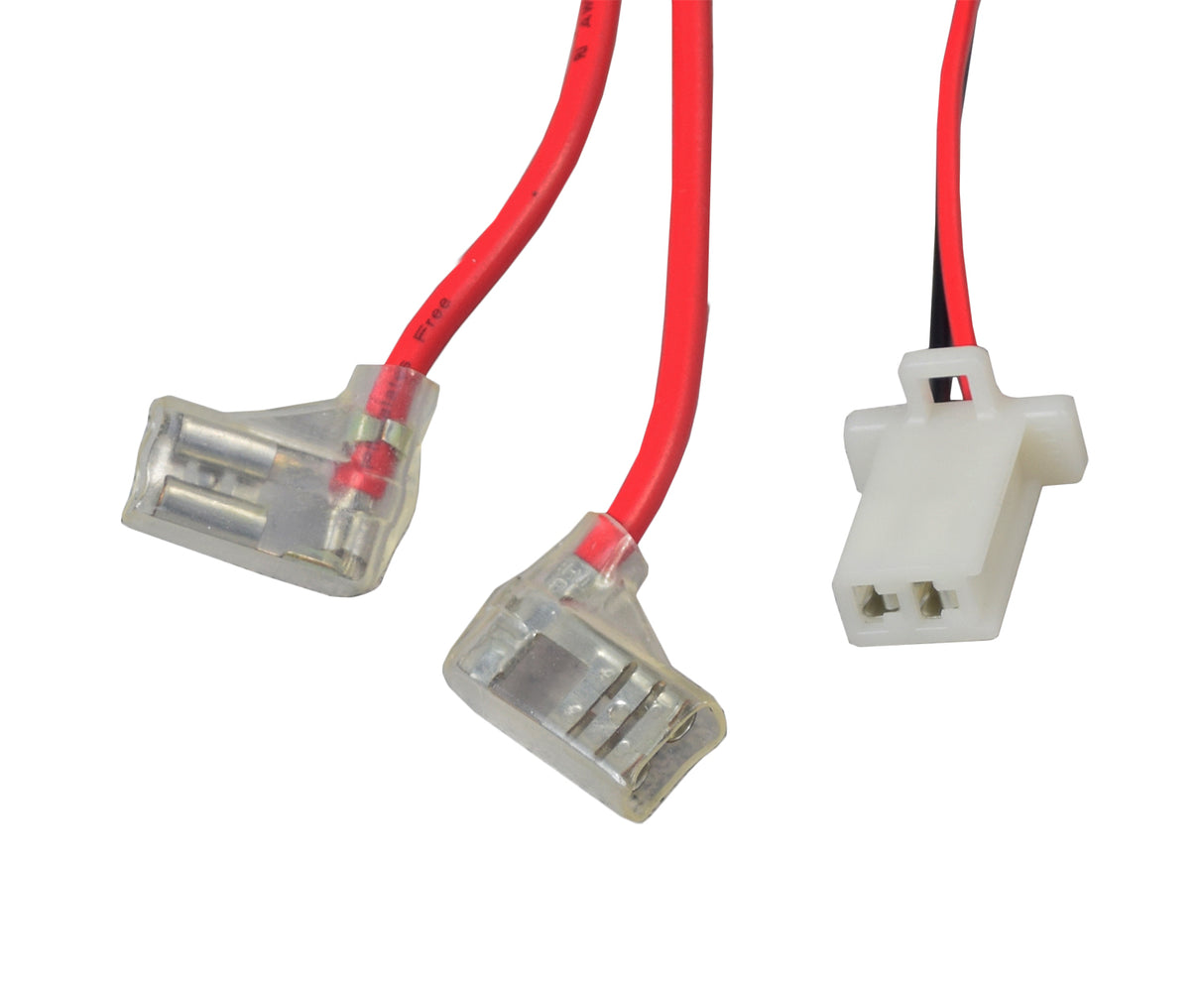

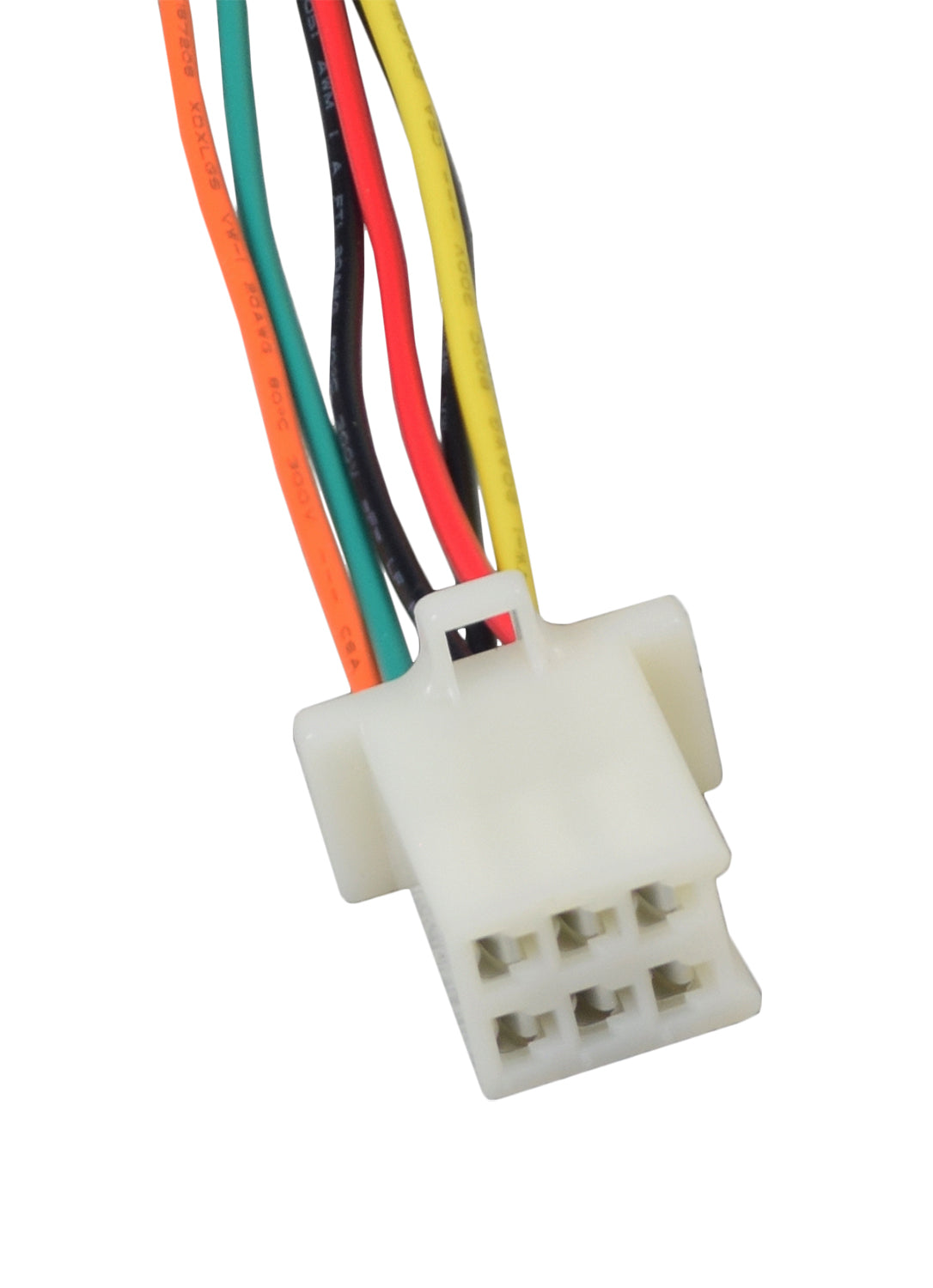

  • Plug & play connectors
  • Compatible with the Razor Crazy Cart (Versions 5+) & the Crazy Cart DLX (Versions 1+)
  • The replacement electrical kit or the Razor Crazy Cart (Versions 5+) and Crazy Cart DLX (Versions 1+) includes both the HB2430-TYD6K1 control module and the foot pedal throttle

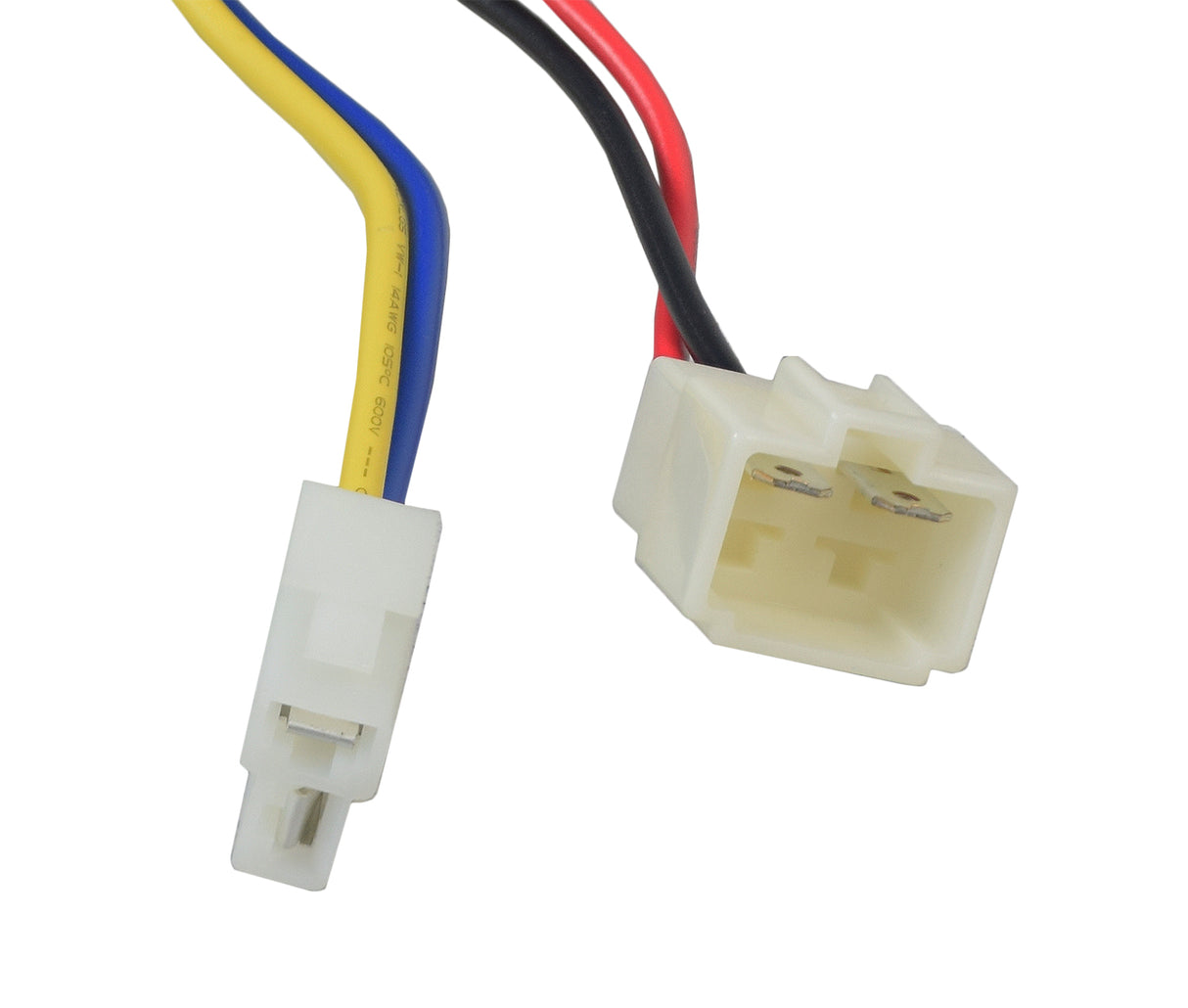

  • All of the necessary wires and plug & play harness connectors come pre-installed, so this is about as simple of a DIY repair as possible
  • 30 Day Warranty
View full description
Checking status...
Checking status...

Description

The replacement electrical kit or the Razor Crazy Cart (Versions 5+) and Crazy Cart DLX (Versions 1+) includes both the HB2430-TYD6K1 control module and the foot pedal throttle. All of the necessary wires and plug & play harness connectors come pre-installed, so this is about as simple of a DIY repair as possible.

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).



⚠ WARNING California Residents: Proposition 65 Warning

Specifications

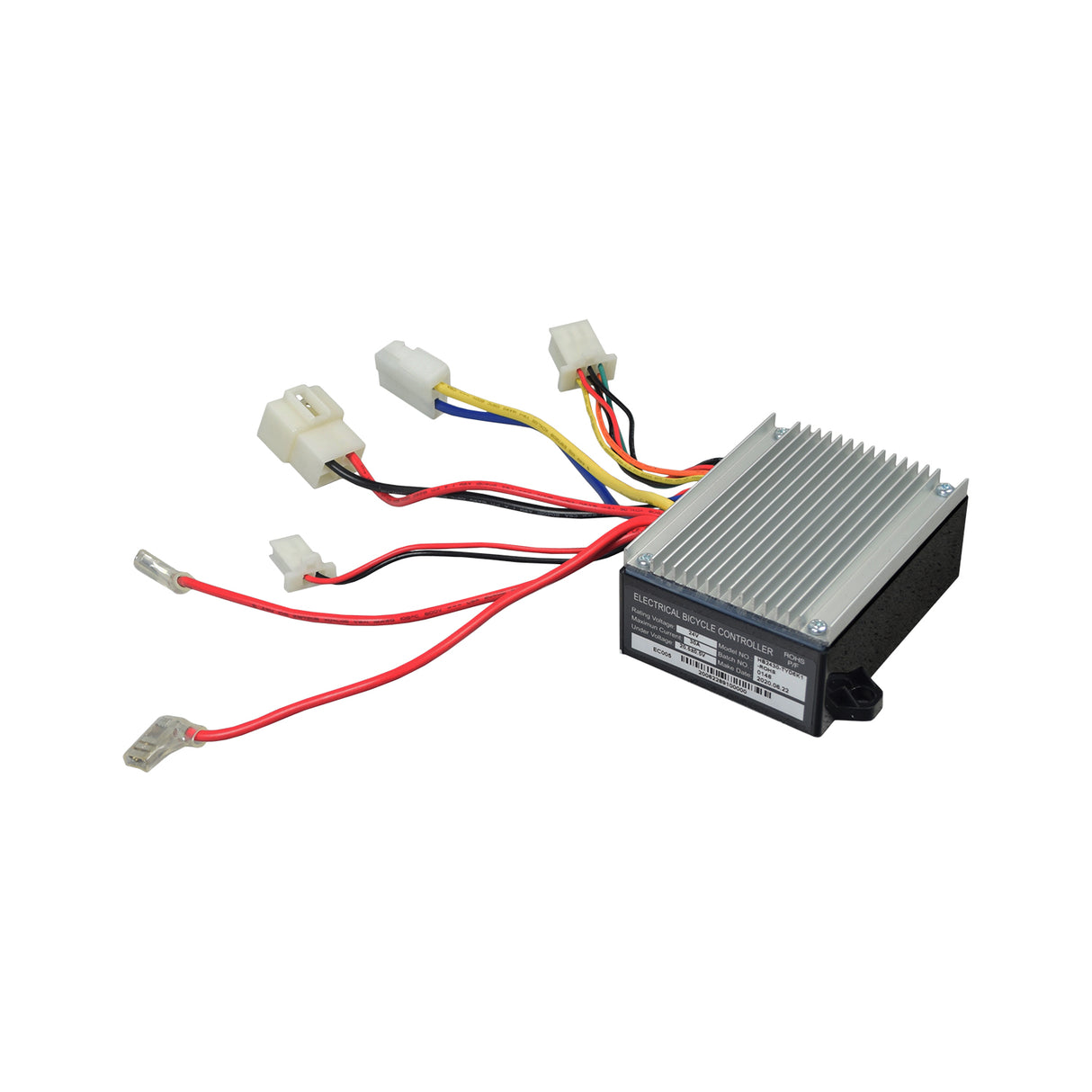

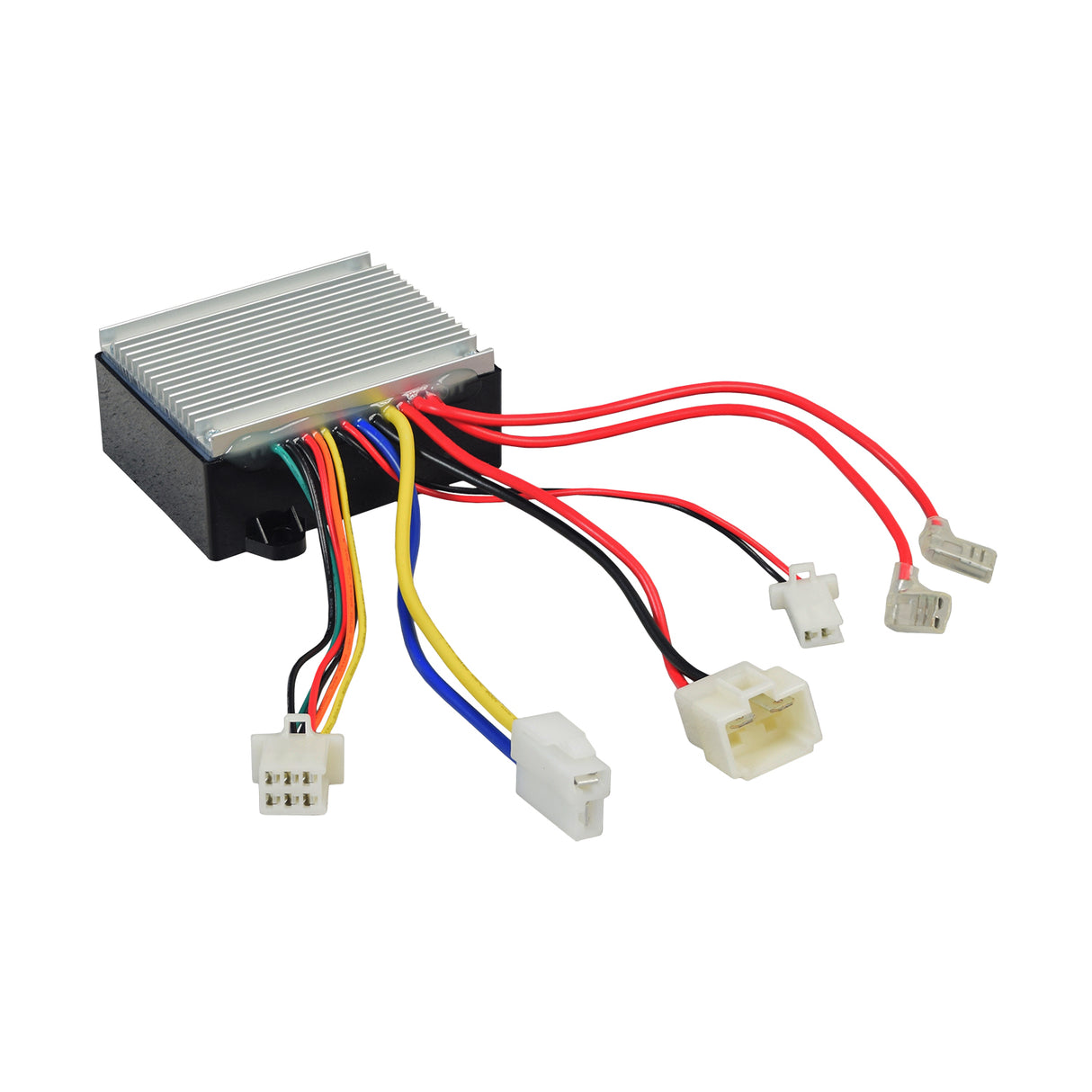

Controller:

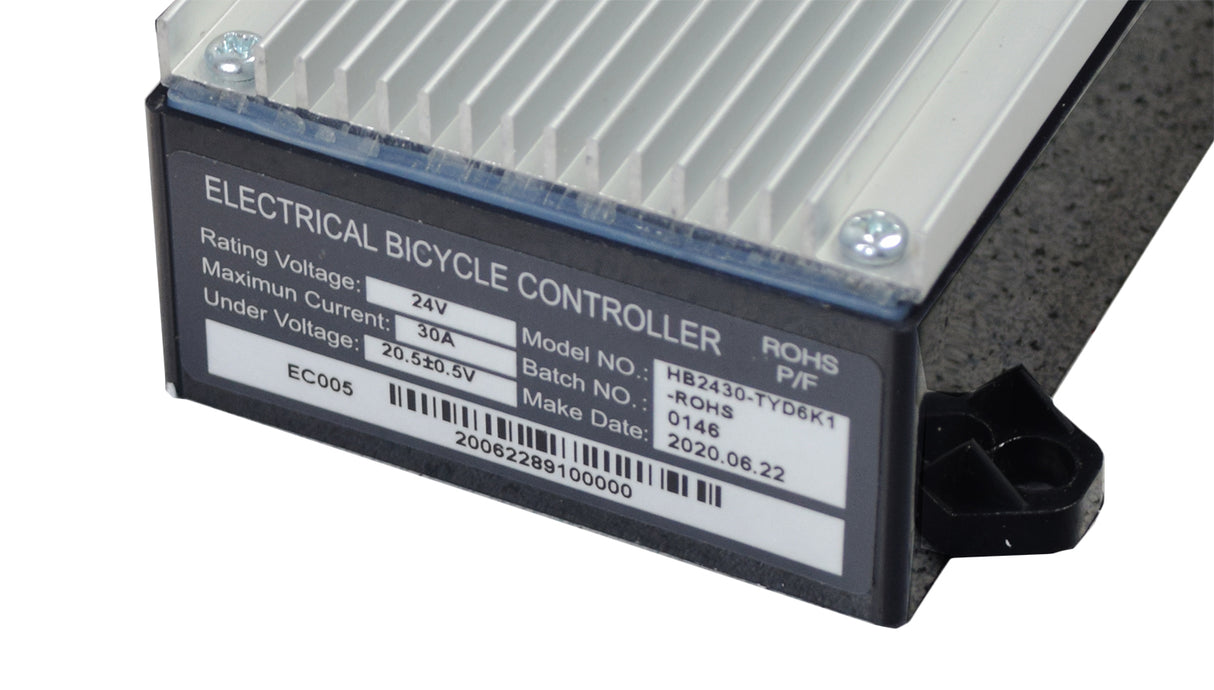

Model: HB2430-TYD6K1
Razor Number: W25143490015
Voltage: 24V
Maximum Current: 30A
Deficiency Voltage Protect: 20V

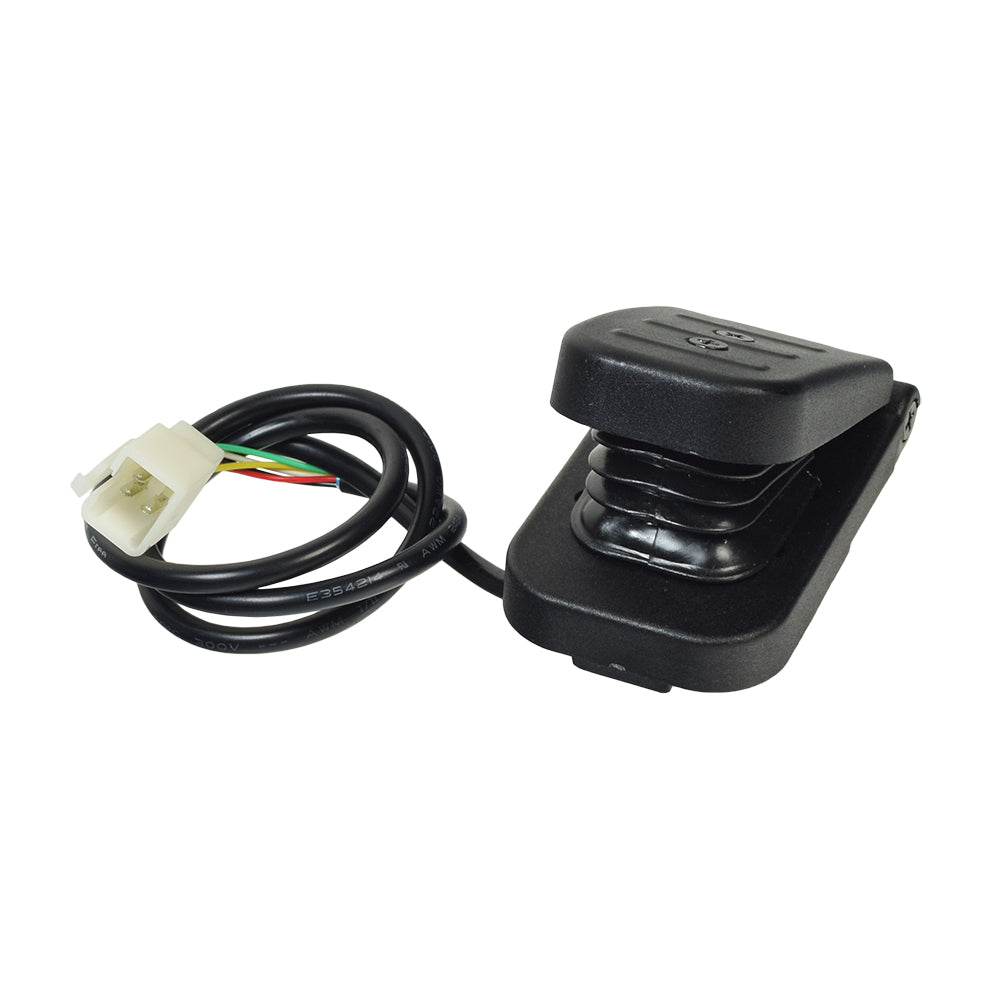

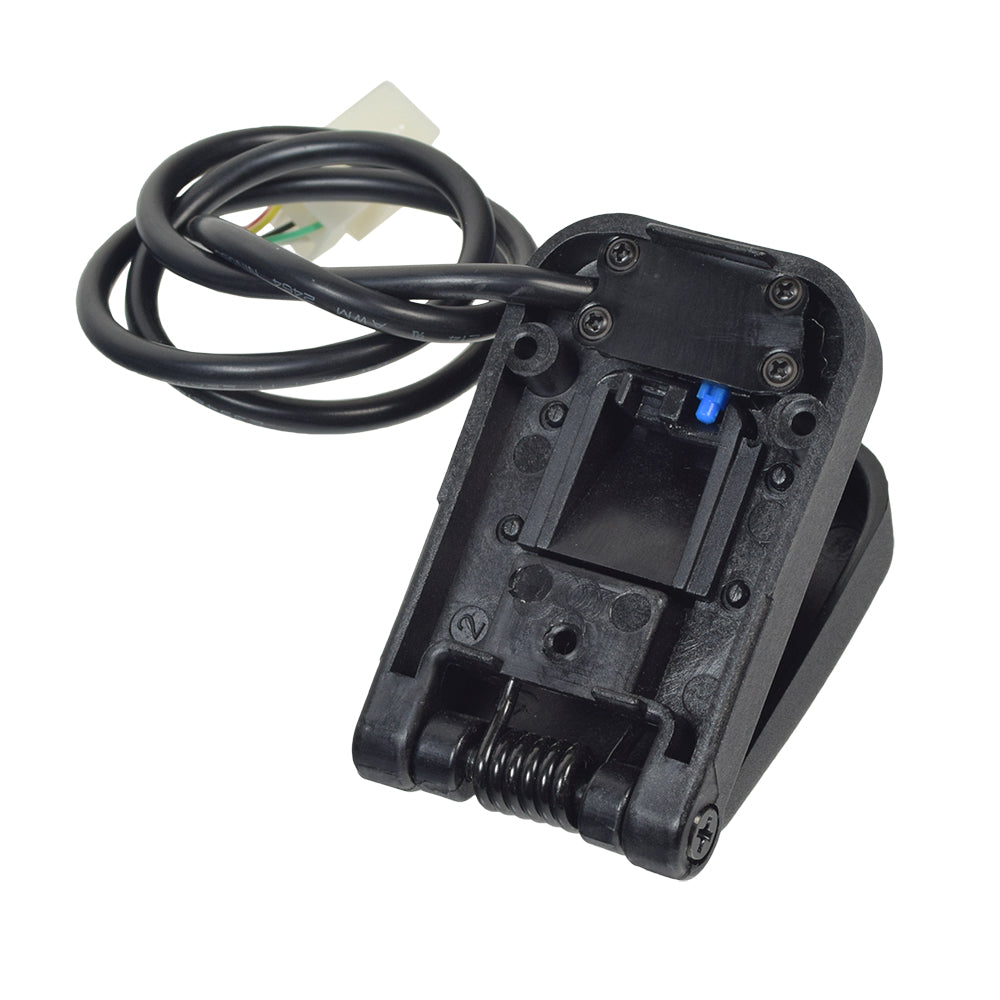

Foot Pedal Throttle:
Razor Number: W25143490043

Questions

would like a wireing diagram for my sun-in-law in florida I bought this for my granddaughter and he doesn't know how to install it please sendto me crisner1@verizon.net thank you very much
It looks like we only have the control module installation guide, unfortunately. The installation guide can be found here: http://docs.monsterscooterparts.com/razor-crazy-cart-controller-installation-instructions.pdf



If that guide does not help with installation and if you still need a wiring diagram, we'd recommend reaching out to Razor directly to see if they can provide that to you based on your unit's Product ID. We are truly sorry for any inconvenience.

Reviews

4.7
out of 5
5 Star
4 Star
3 Star
2 Star
1 Star
Vince T
October 3rd, 2019
Fixed the problem and made more kids happy.
Lynn
April 12th, 2019
Punctual and as described
Will J
March 28th, 2019
Items are working as described, so far, hopefully they will last. Only thing that I will say negative is the shipping times. Takes over a week to receive items unless you pay for faster shipping.
