50cc 4-Stroke Auto-Clutch Electric Start Honda-Clone ATV Engine

SKU: E05-500

50cc 4-Stroke Auto-Clutch Electric Start Honda-Clone ATV Engine

SKU: E05-500
$209.99 +Free Shipping
  • Carburetor joint & hardware included
  • 50cc 4-stroke auto-clutch Honda-clone gas ATV and dirt bike engine with electric start and no reverse

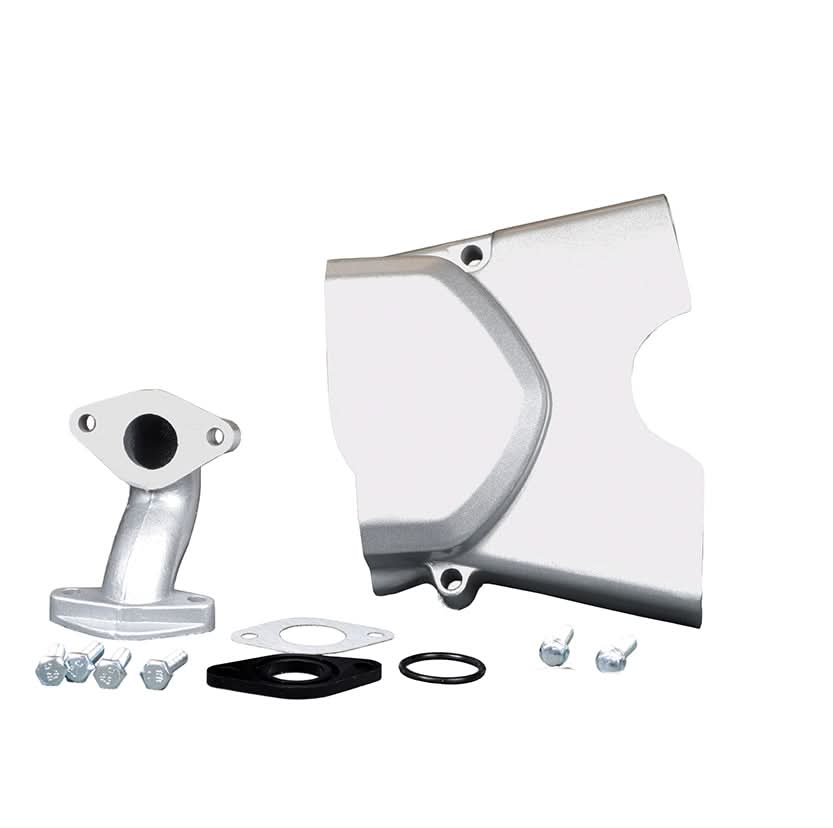

  • The chain cover, carburetor joint (intake manifold extension), gaskets, O-ring, and carburetor mounting hardware is included

    This Honda-clone engine is used in a wide variety of applications, including all-terrain vehicles (ATVs), dirt bikes, pit bikes, go karts, and dune buggies
  • 30 Day Warranty
View full description
Checking status...
Checking status...

Description

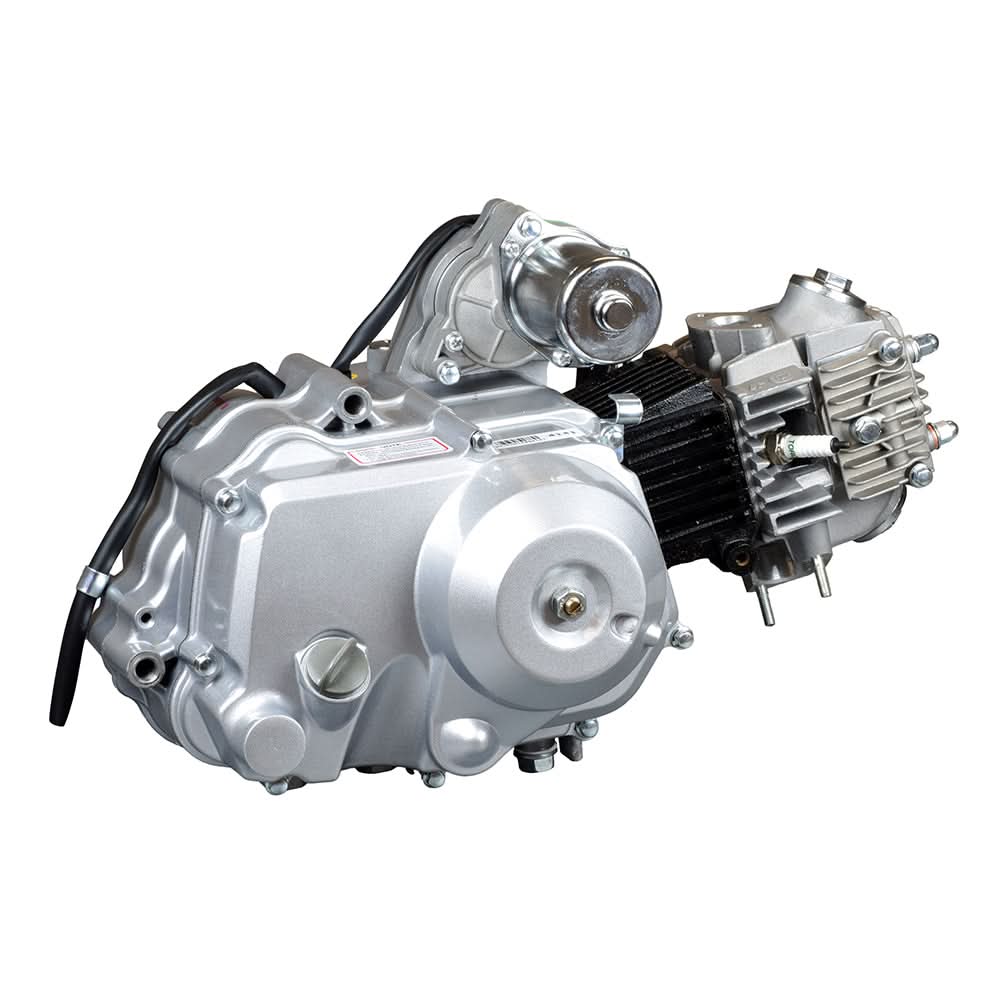

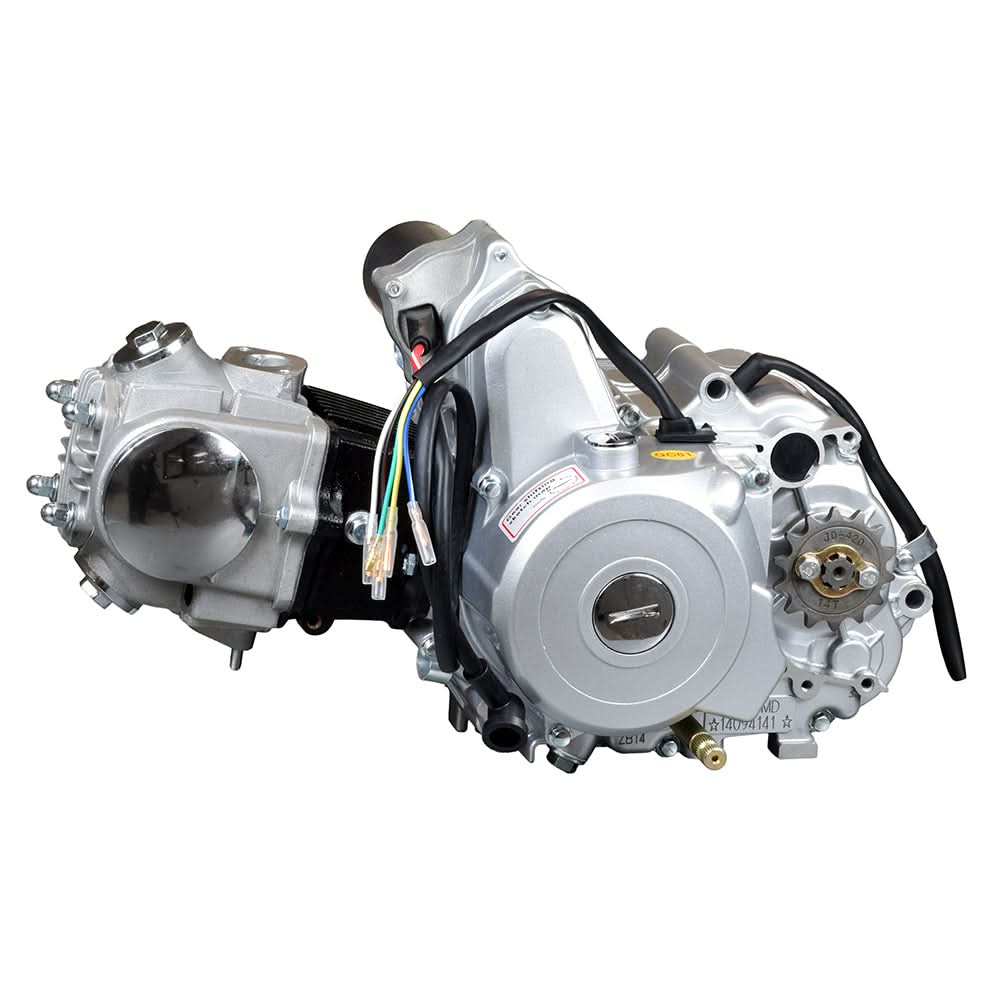

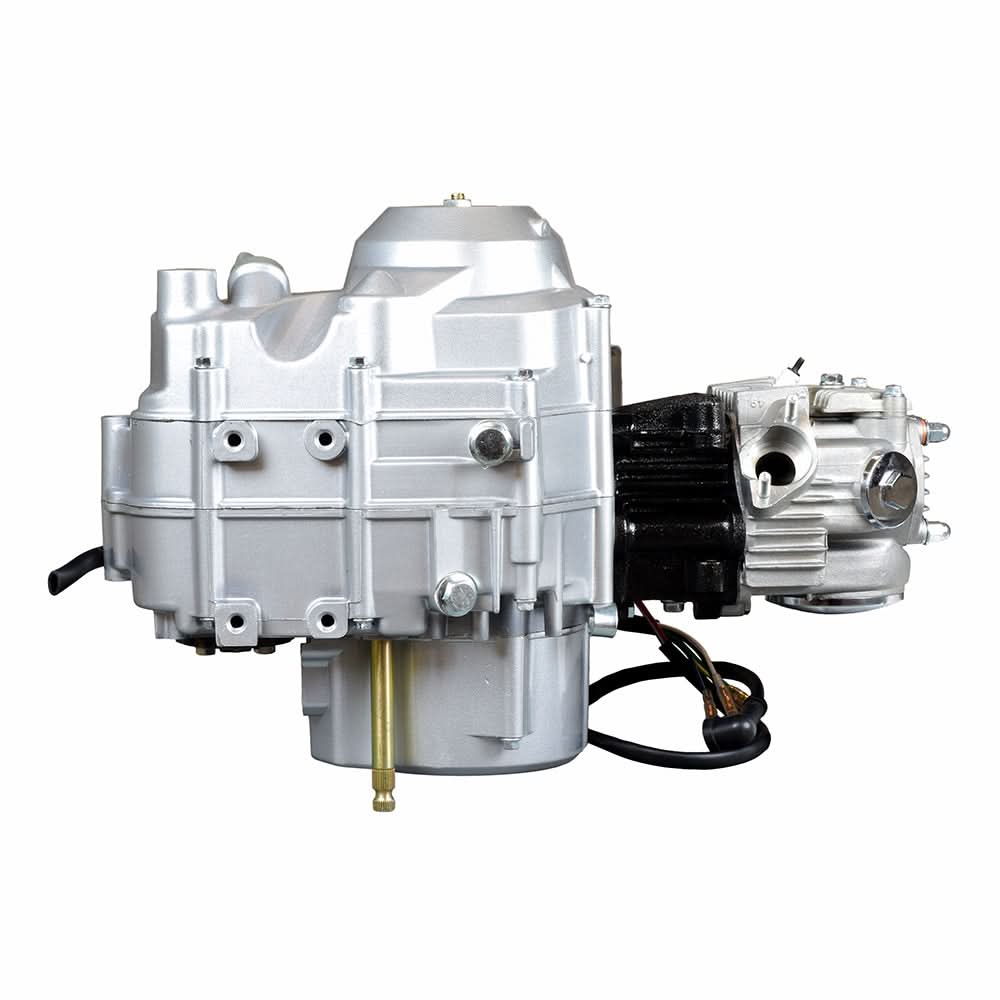

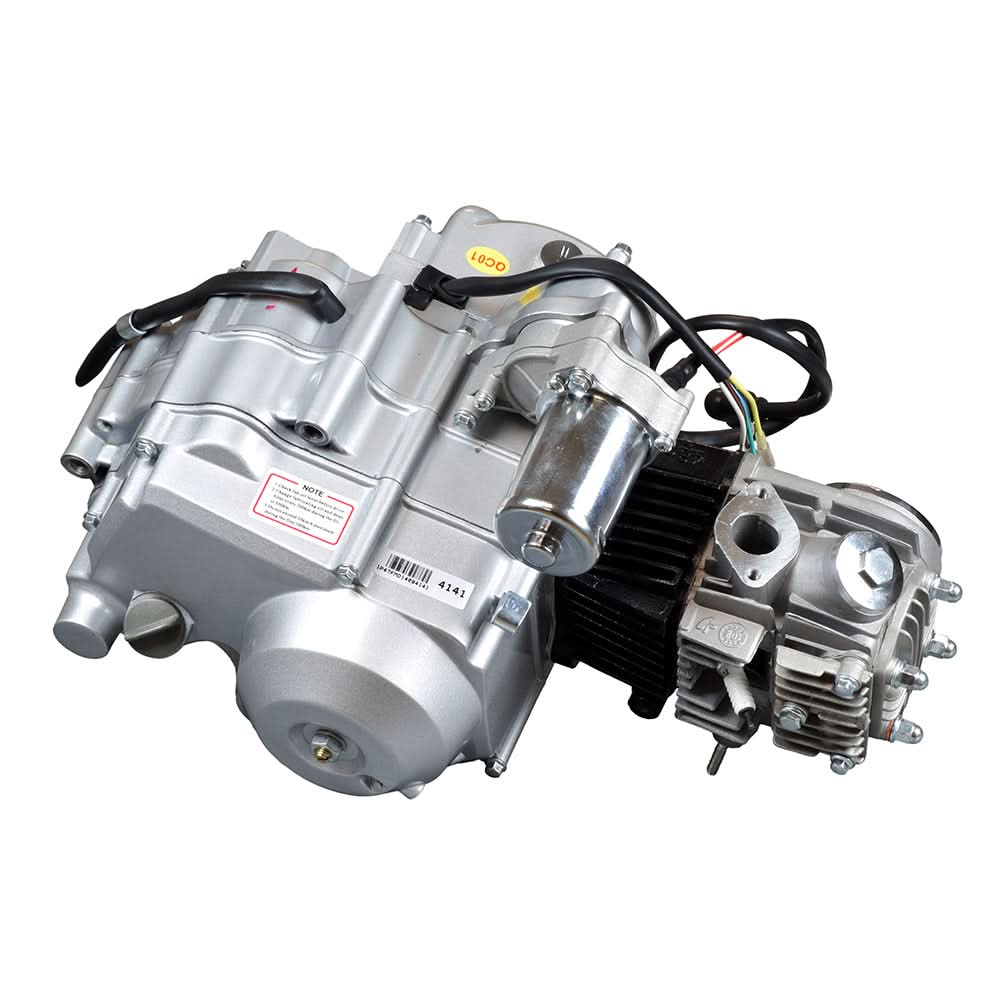

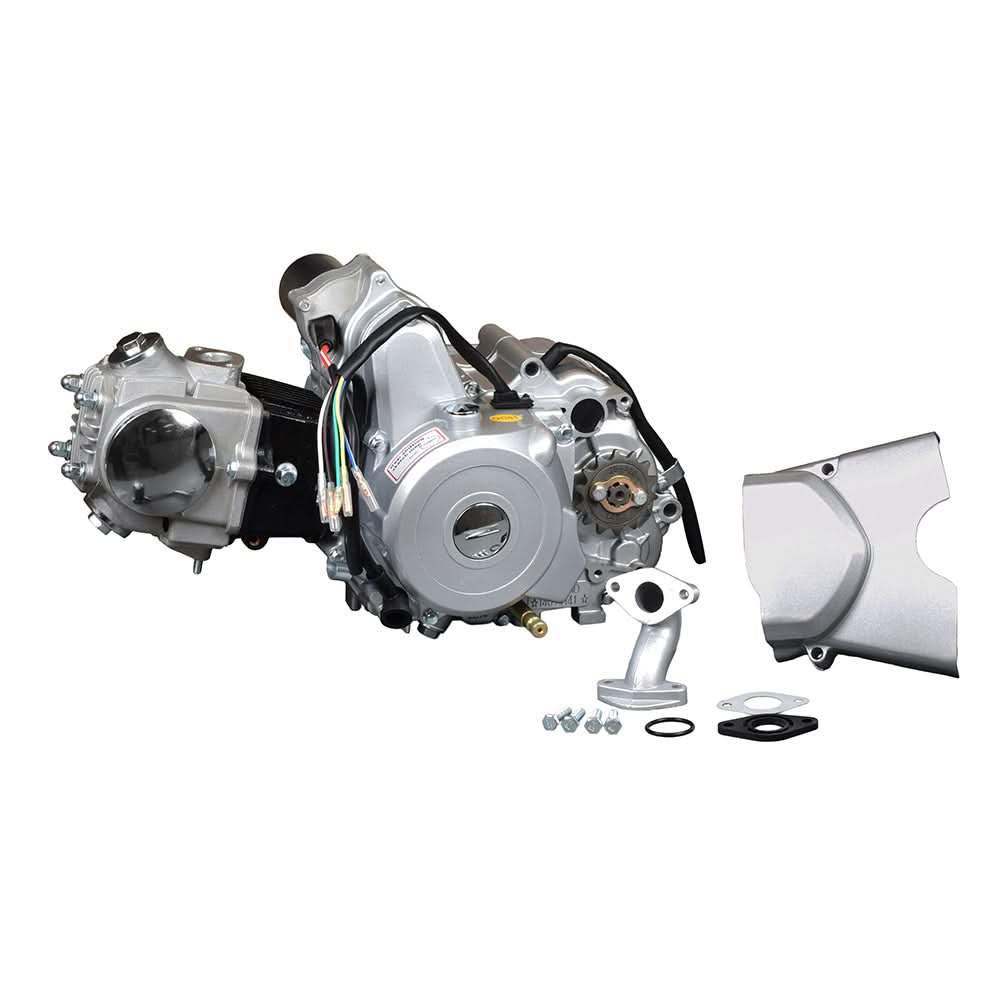

50cc 4-stroke auto-clutch Honda-clone gas ATV and dirt bike engine with electric start and no reverse. The chain cover, carburetor joint (intake manifold extension), gaskets, O-ring, and carburetor mounting hardware is included

This Honda-clone engine is used in a wide variety of applications, including all-terrain vehicles (ATVs), dirt bikes, pit bikes, go karts, and dune buggies. Fairly universal in nature, this engine will replace many Chinese made OEM factory 50cc ATV & dirt engines, from manufacturers such as Baja Motorsports, Coolster, Motovox, Roketa, and Tao Tao.

PLEASE NOTE:
The engine exhaust port has a machined cut-out side to receive a collared exhaust pipe. This is by design and not a product defect. The collared pipe fits down into the exhaust port with the diamond-shaped rhombus flange fitting over the studs.

An elbow-shaped carburetor joint (or intake manifold extension) is included with this engine. Depending on your vehicle type, this cast & machined "pipe" holds the carburetor at the proper angle and away from the engine head. Although the exhaust port with the two pre-installed mounting studs uses the same hole-spacing as the intake, this intake manifold extension does not work for the exhaust due to the cut-out on the exhaust port.

In addition, there are many different versions of 50cc 4-stroke engines used in the Chinese scooter, all-terrain vehicle, dirt bike, and go-kart market. Please be sure to check the detailed specifications and dimensions on our specifications list prior to ordering.

⚠ WARNING California Residents: Proposition 65 Warning

Specifications

Style: 139FMA
Engine Type: Single Cylinder 4-Stroke
Cooling: Air Cooled
Displacement: 48cc
Bore and stroke (mm): 38.8/41.4
Compression Ratio: 7.2:1
Max Power (kw/RPM): 2.0/7500
Max Torque (N.m/RPM): 3.0/7500
Nominal Power/Speed (kw/RPM): 2/7000 ±500
No Load Speed (RPM): 1500 ±100
Spark Plug: A7TC
Spark Plug Gap (mm): 0.6-0.7
Starting: Electric starter motor
Lower Engine Mounts: 11cm
Lower Mounting Bracket Through Hole Diameter: .04"
Center to Center Exhaust Mounting Bolts: 50mm
Lower Secondary Mounting Bracket: 108mm
Lower Secondary Mounting Bracket Through Hole Diameter: .337"
Upper Engine Mount Through Hole Diameter: .315"
Overall Length: 25"
Width: 13.5"
Height From Bottom Mounting Bracket to Top Air Intake: 11.25"
Treaded Drive Shaft: 3cm
Weight: 42.40lbs

Questions

Does e05 500 engine fit in a Honda z50r and is it 3sd or 4sd
We have not confirmed compatibility with that model. To determine if it will fit, please compare the specifications (under the Specifications section on this item page) to the specifications of your engine.
Do you offer a 50cc engine with semi auto trans and kick start? No electric start?
This engine is only available with an electric start. We do carry other engines without electric starts, they can can be found here: https://www.monsterscooterparts.com/trsc/rec-categories/entr?filter_engine_start=748

Reviews

5
out of 5
5 Star
4 Star
3 Star
2 Star
1 Star
Neal L
December 1st, 2018
The first motor I received came damaged but the they shipped out a new one right away. Very happy with the customer service
