200x50 Rear Wheel Assembly for Chain Drive Razor E200 Series (Versions 5-27)
Item: W02-221
Razor: W13112099048
200x50 Rear Wheel Assembly for Chain Drive Razor E200 Series (Versions 5-27)
All Images © 2017 Monster Scooter Parts
$ 25 99
25.99
Save 15% with coupon code: AARGH
Discontinued
Discontinued
No longer available.
Product Features
  • 200x50
  • Rim, tire, tube, & brake
  • Versions 5-27
  • Chain drive scooters only
  • Warranty: 30 Days
  • Description

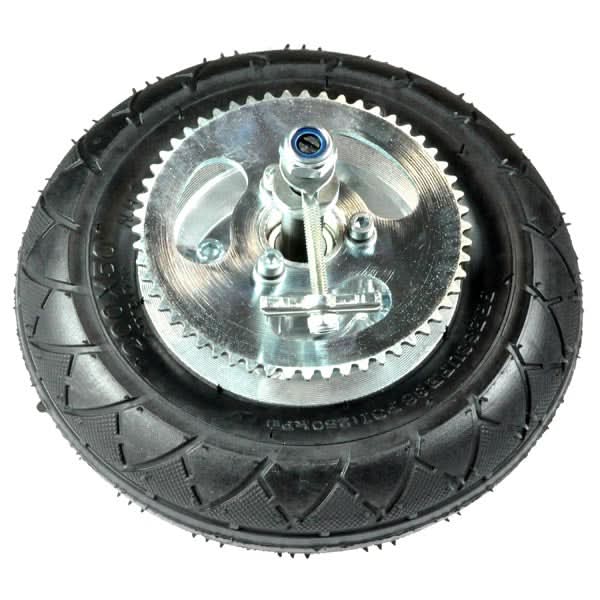

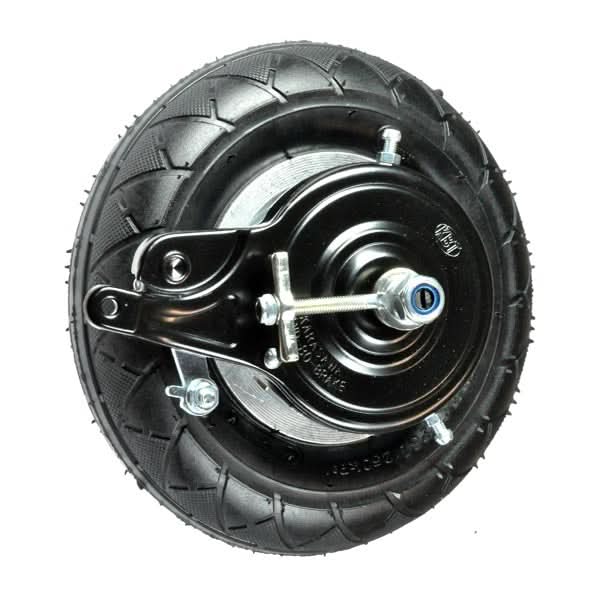

    Rear wheel assembly for chain-drive versions of the Razor E200 (Versions 5-27). Includes 200x50 (8"x2") tire with Q104 tread, 200x50 (8"x2") inner tube, rim, 80 mm rear band brake assembly, and chain sprocket.

    Not compatible with belt-drive versions of the E200 series.
    Specifications
    Tire Size: 200x50 mm
    Sprocket: #25 chain, 55 tooth
    Sprocket Offset: 27 mm from the rim to the outside face of the sprocket
    Brake Type: Band brake
    Brake Drum Diameter: 80 mm
    Brake Drum Offset: 31 mm from the rim to the outside of the brake drum
    Bearings: 6200Z
    Bearing Inset (Sprocket Side): 13.7 mm
    Bearing Inset (Brake Drum Side): 17.2 mm
    Compatibility
