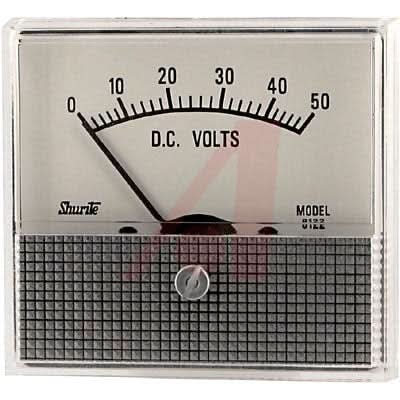

DC Voltmeter with Range up to 50 Volts

Analog electromechanical voltmeter with a measurement range of 0-50 volts. This DC voltmeter utilizes a polarized-vane solenoid or moving magnet.

This DC voltmeter can be used on 24 volt or 36 volt custom projects matched with a 500 watt to 1000 watt DC motor.

Great for measuring voltage levels of 24 volt or 36 volt battery packs, either on a custom scooter or elecric vehicle or on the bench in the lab.

Polystyrene case with metal scales. 5% accuracy.

The case physically measures approximately 2.5" square, and is equipped with a white field with printed black text. Age and moisture resistant.

Install in front or behind panels.

Accuracy: 5%
Dimensions: 2.53" L x 1.99" W x 2.31" H
Function: Voltage
Length/Scale: 2.5"
Material/Casing: Polystyrene
Type: Electromechanical
Voltage/Range: 0 to 50 VDC
