36 Volt 1000 Watt Direct Drive Electric Motor & Rear Wheel Assembly with Mounting Bracket
Currie Technologies
Item: C80-8748
Currie Technologies: WH-12R-1000A

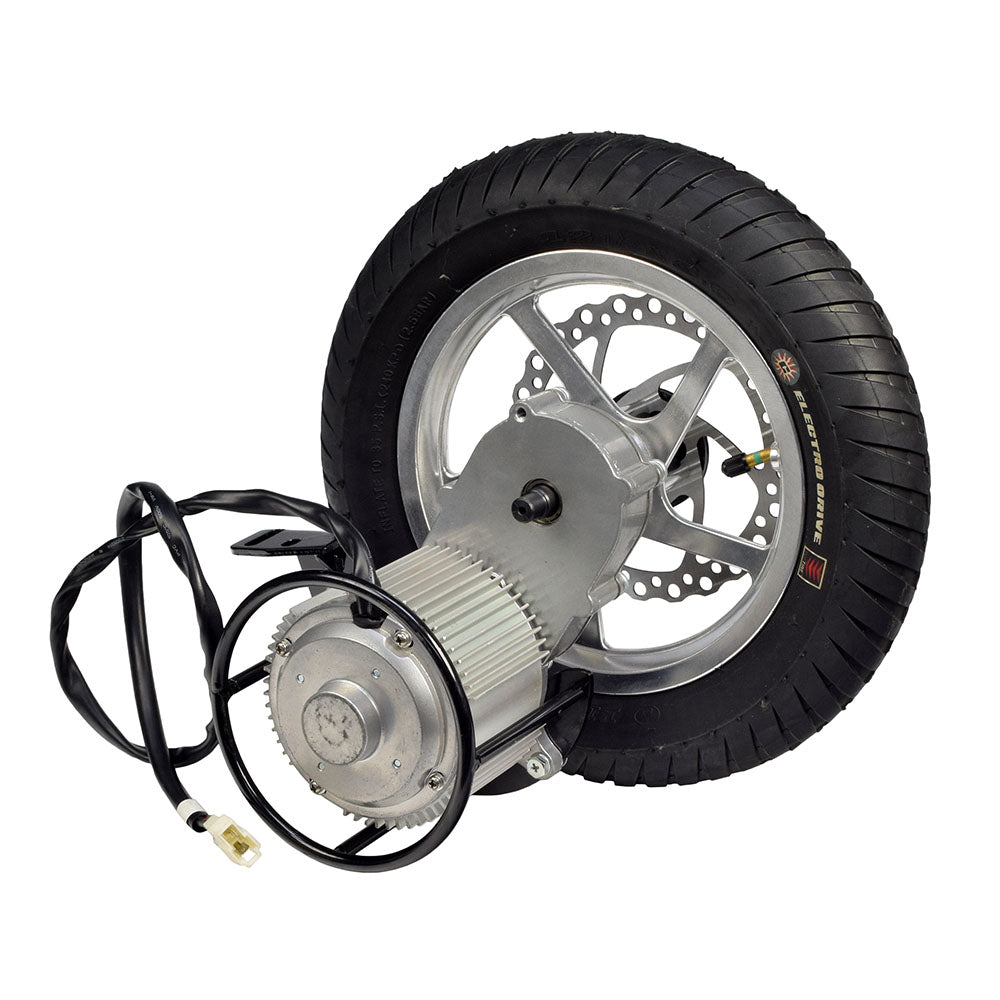

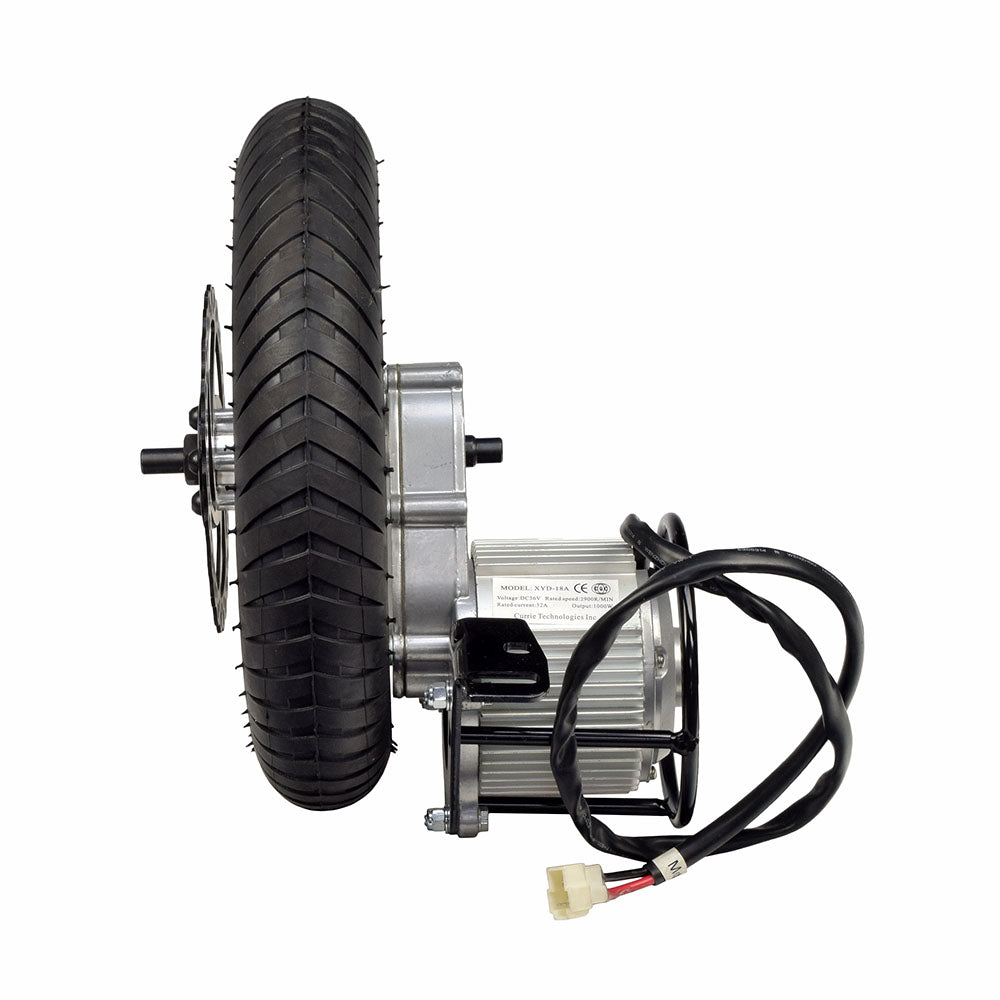

36 Volt 1000 Watt Direct Drive Electric Motor & Rear Wheel Assembly with Mounting Bracket
All Images © 2017 Monster Scooter Parts
$ 299 99
299.99
Discontinued
Discontinued
No longer available.
Product Features
Description

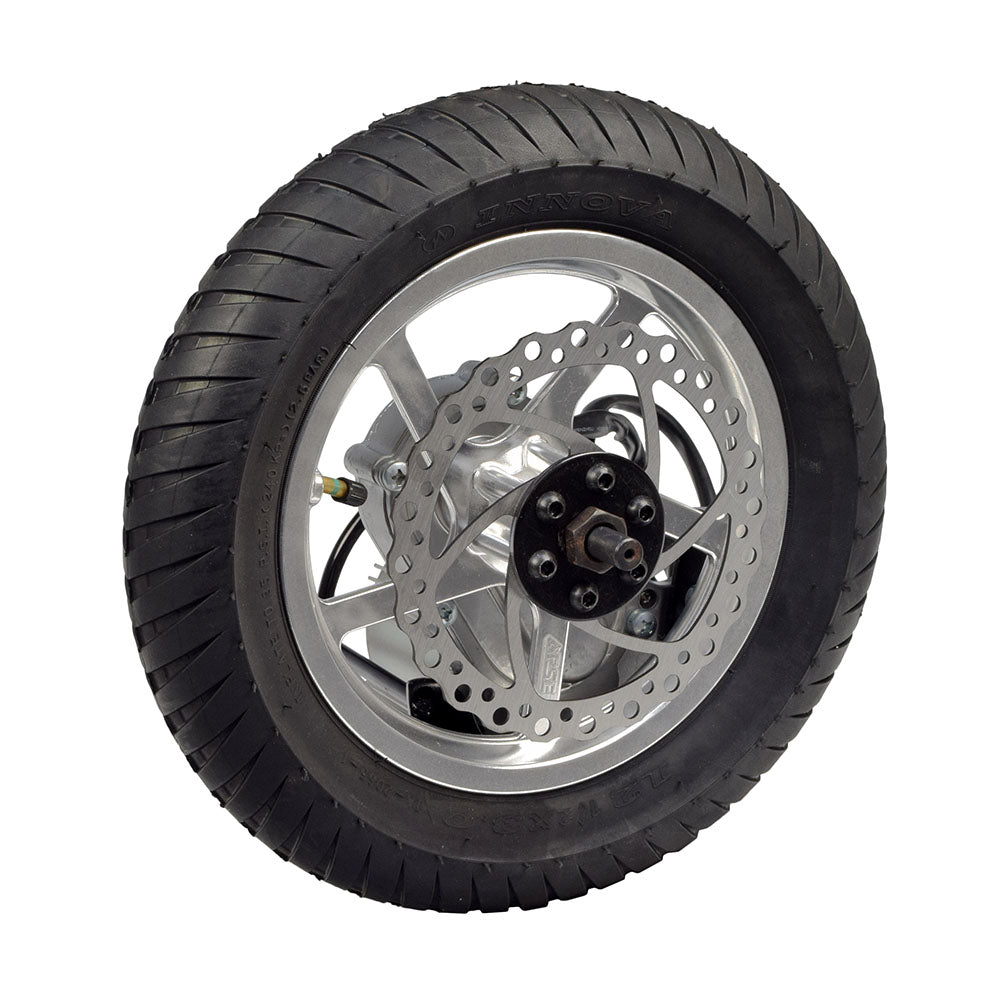

12-1/2" x 3.0" (12.5x3.00) rear wheel assembly complete with Currie chrome 5 star rim, 3.0" Currie Street V-Groove Tire, tube, bearings, axle, and 36 Volt 1000 Watt direct drive motor. Direct drive motor is the OEM motor on 1000 Series Schwinn & IZIP electric scooters (direct drive only). Motor turns both clockwise and counter-clockwise. Does not include sprocket. Three-bolt universal mounting bracket.

Direct drive motor not to be used with a chain. The output shaft is geared to fit only on Schwinn & IZIP direct drive model scooters. Not compatible with 24 Volt Direct Drive systems from Currie Technologies.
Specifications
Model: XYD-18A Motor
Type: Brush
Voltage: 36 Volt DC
Rated Speed: 3600 RPM
Rated Current: 32 Amp
Output: 1000 Watts

Tire Size:12-1/2" x 3.0" Brake Rotor Size: 6-1/2" Shaft Size: .573 Length of Electrical Cord: 32"
