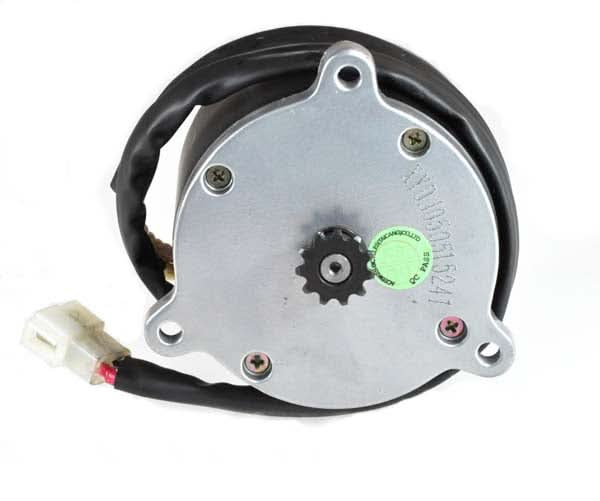

36 Volt 750 Watt Electric Motor with 11 Tooth #25 Chain Sprocket
Currie Technologies
SKU:
C80-8730
36 Volt 750 Watt Electric Motor with 11 Tooth #25 Chain Sprocket
Currie Technologies
SKU:
C80-8730
$128.99
+Free Shipping
- 36 Volt 750 Watt chain driven electric motor
- Works on most 36 volt electric scooters, bikes, go karts, and mopeds
- 30 Day Warranty
You May Also Like
Page
1
/
2
Page
1
/
2
Description
36 Volt 750 Watt chain driven electric motor. Works on most 36 volt electric scooters, bikes, go karts, and mopeds.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
⚠ WARNING California Residents: Proposition 65 Warning
Specifications
Type: Brush
Voltage: 36 Volt DC
Sprocket: 11 Tooth, #25 Chain
Output: 750 Watts

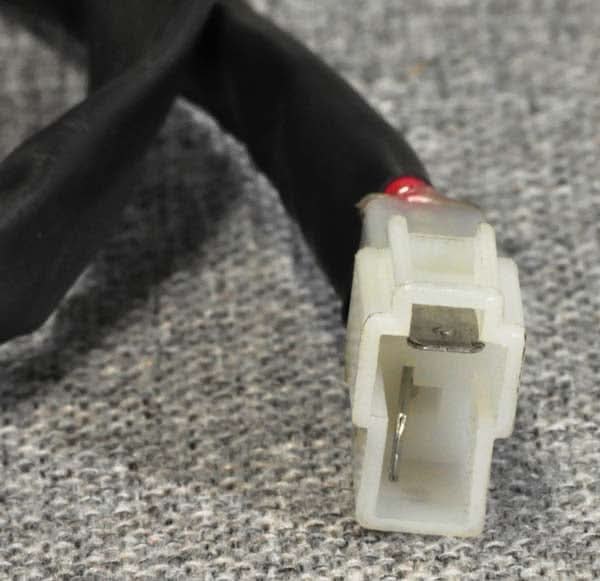

Wiring Harness: 30 1/2" With 2 Pins
Mounting Pattern: 3 Bolt
Sprocket: Removable Set-Screw Sprocket
Case Length: 3-15/16" (100 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
Voltage: 36 Volt DC
Sprocket: 11 Tooth, #25 Chain
Output: 750 Watts
Wiring Harness: 30 1/2" With 2 Pins
Mounting Pattern: 3 Bolt
Sprocket: Removable Set-Screw Sprocket
Case Length: 3-15/16" (100 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
