24 Volt 750 Watt XYD-6B Electric Motor with 11 Tooth #25 Chain Sprocket

Currie Technologies
SKU: C80-8775
Currie: MT-24750-001S

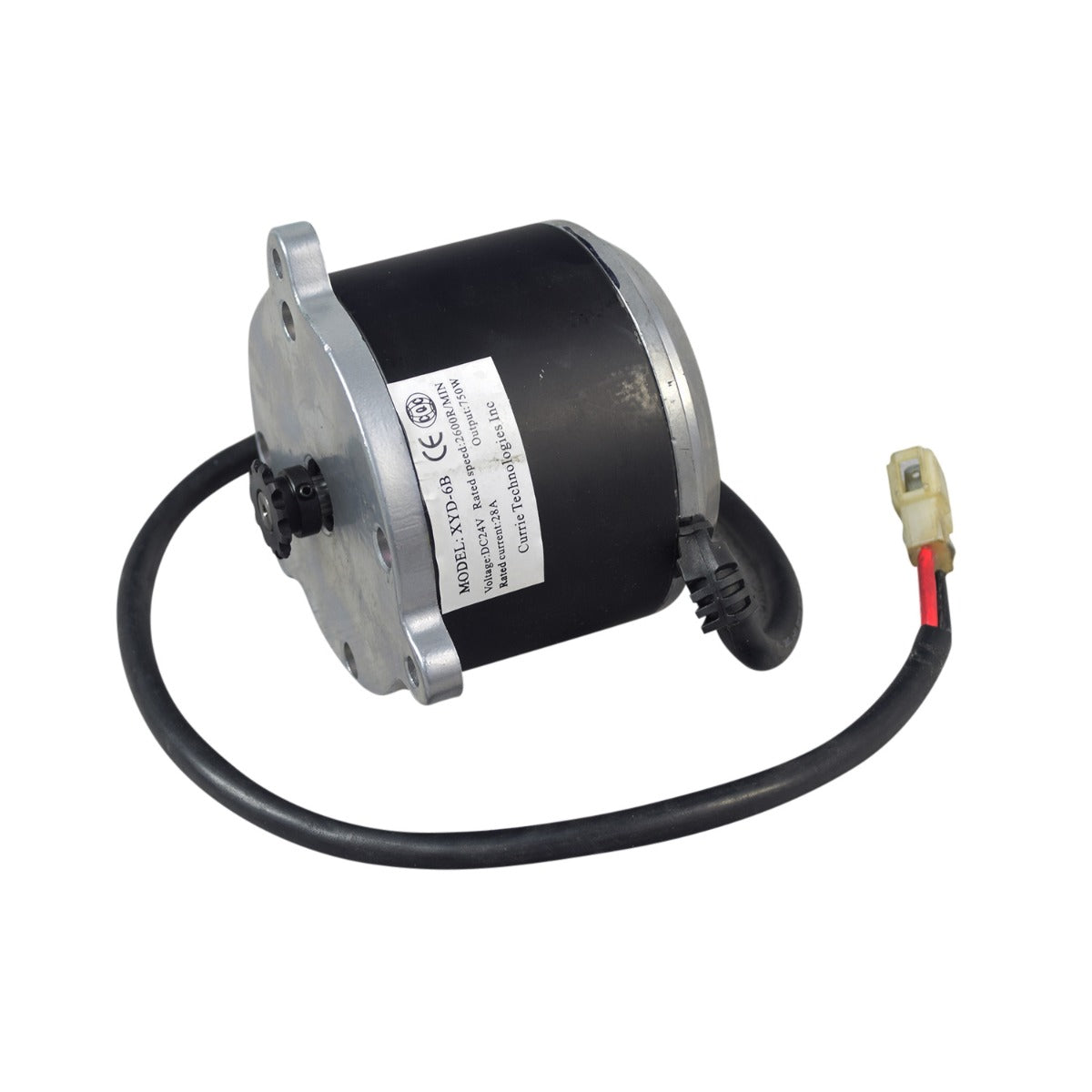

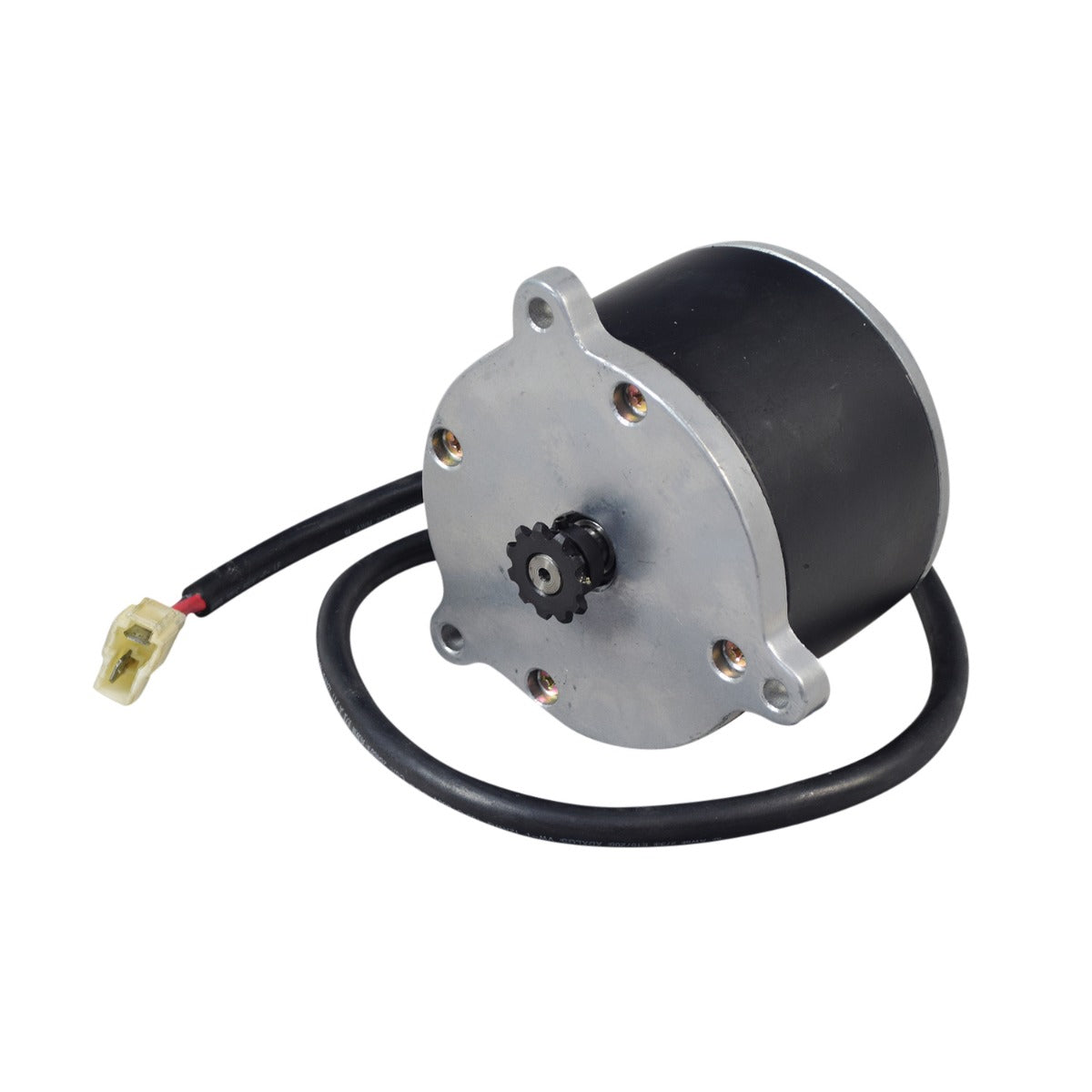

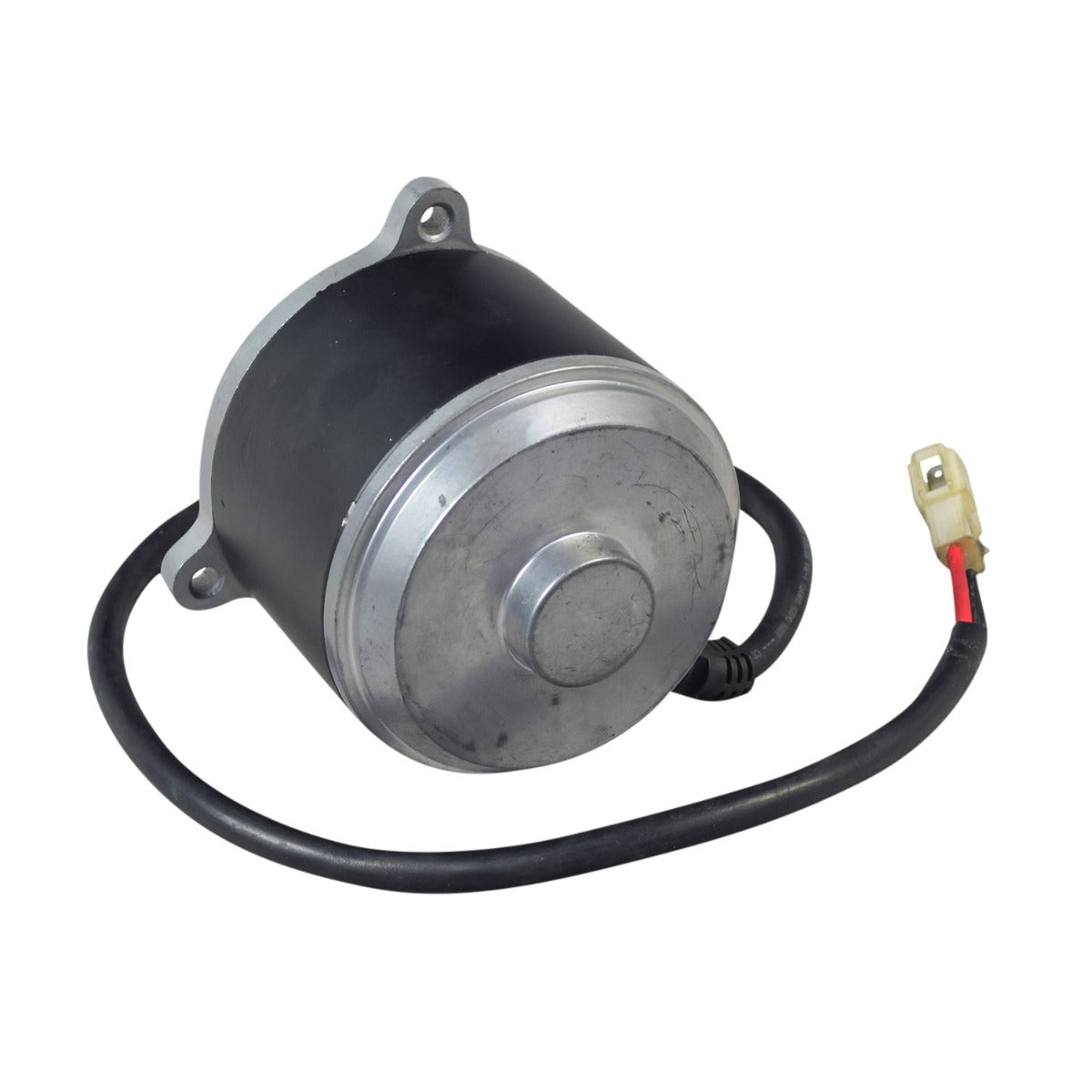

24 Volt 750 Watt XYD-6B Electric Motor with 11 Tooth #25 Chain Sprocket

Currie Technologies
SKU: C80-8775
Currie: MT-24750-001S
$79.99 +Free Shipping
  • 24 volt 750 watt
  • 11 tooth #25 chain sprocket
  • XYD-6B motor
  • 2600 RPM
  • This motor has great adaptability, it will work with all the Currie OEM and Currie compatible parts
  • This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
  • 30 Day Warranty
View full description
In Stock
In Stock
Ships Today!

Description

This motor has great adaptability, it will work with all the Currie OEM and Currie compatible parts.

This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.

⚠ WARNING California Residents: Proposition 65 Warning

Specifications

Model: XYD-6B Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 28 amp
Output: 750 watts
Rotation: Reversible
Sprocket: 11 tooth #25 chain sprocket
Case Length: 3-3/4" (95 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)

Questions

Is this a permanent magnet motor
This is a 24 volt DC brush motor, and not a permanent magnet motor.
Will this fit a Schwinn S350 Electric Scooter ?
From the information, we have on that model, no as the original has a 15 tooth sprocket and this one only has 11. We highly recommend reaching out to a technician to inquire about the possibility of interchanging the original motor to this one, just to be safe.
